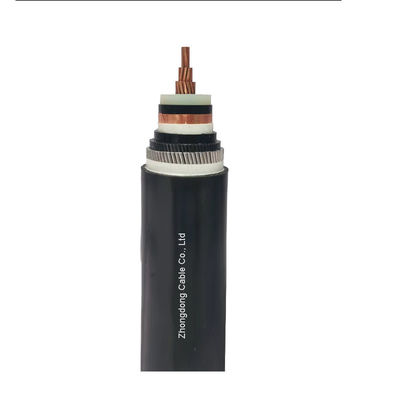

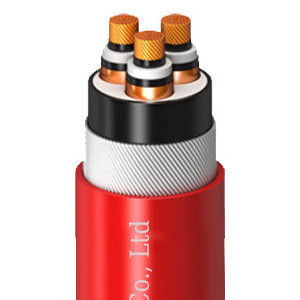

OEM Single Core Three Core XLPE Power Cable Cu XLPE PVC SWA Medium Voltage Cable

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

15.6

22.5

844

3×25

6.0±0.1

15.6

43.5

2765

1×35

6.6±0.2

162

23.1

948

3×35

6.6±0.2

16.2

44.8

3094

1×50

7.6±0.2

172

24.3

1105

3×50

7.6±0.2

17.2

47.5

3626

1×70

9.2±0.2

18.8

25.9

1351

3×70

9.2±0.2

18.8

51.3

4464

1×95

10.9±0.2

20.5

27.7

1660

3×95

10.9±0.2

20.5

55.2

5439

1×120

12.2±0.2

21.8

29.0

1926

3×120

12.2±0.2

21.8

58.3

6338

1×150

13.6±0.2

23.2

30.6

2237

3×150

13.6±0.2

23.2

61.5

7312

1×185

15.2±0.2

24.8

32.2

2623

3×185

15.2±0.2

24.8

65.3

859%

1×240

17.4±0.2

27.0

35.9

3552

3×240

17.4±0.2

27.0

70.6

10543

1×300

19.5±0.2

29.1

38.1

4211

3×300

19.5±0.2

29.1

75.6

12611

1×400

22.0±0.2

31.6

41.0

5095

3×400

22.0±0.2

31.6

82.7

16102

1×500

24.8±0.2

352

44.8

6258

3×500

24.8±0.2

35.2

91.0

19826

1×630

28.2±0.2

38.6

48.5

7733

3×630

28.2±0.2

38.6

99.2

24528

1×800

34.0±0.2

44.4

54.5

9776
