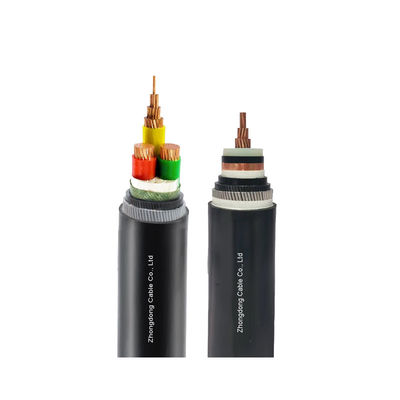

Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation

Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation
Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation

Large Image :  Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: NYBY NAYBY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation

Description
Armored: Steel Wire Sheath Material: PVC
Insulation: XLPE Rated Voltage: 6/10kV
Conductor: Copper No Of Core: 1,3
Highlight:

Copper Conductor 15kV MV Cable

,

XLPE Insulation MV Power Cable

Copper Conductor Medium Voltage Cable 8.7/15kV Cu/XLPE/PVC/SWA







Construction



Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation 0







  1. Conductor: Circular compacted stranded Copper or aluminium
  2. Conductor screen: Extruded semi-conductive compound
  3. Insulation: XLPE
  4. Insulation screen: Extruded semi-conductive compound
  5. Metallic screen: Copper Wire
  6. Binder tape: non-hygroscopic material
  7. Inner covering(bedding):  PVC
  8. Metallic armor: Galvanized steel tape



Application



Medium-voltage cables (typically rated between 1 kV and 35 kV) are extensively used in power distribution networks to deliver electricity from substations to industrial, commercial, and residential areas. They are commonly employed in underground and overhead systems, industrial plants, renewable energy installations (e.g., solar farms, wind turbines), and infrastructure projects like airports, hospitals, and transportation hubs. These cables also serve in mining operations, oil and gas facilities, and urban grids due to their durability, high current-carrying capacity, and resistance to environmental stressors. Insulated with materials like XLPE, they ensure efficient energy transfer, safety in harsh conditions, and reliability in medium-voltage application



Copper Conductor Medium Voltage MV Power Cable 8.7/15kV XLPE Insulation 1



Specification



YJV62   YJV22-3.6/6kV  Cable Structure Parameters



Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km



Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×25

6.0±0.1

12.2

20.5

751

3×25

6.0±0.1

12.2

39.1

2415

1×35

6.6±0.2

12.8

21.1

853

3×35

6.6±0.2

12.8

40.8

2775

1×50

7.6±0.2

13.8

22.3

1006

3×50

7.6±0.2

13.8

43.1

3250

1×70

9.2±0.2

15.4

23.9

1248

3×70

9.2±0.2

15.4

46.9

4063

1×95

10.9±0.2

17.1

25.8

1551

3×95

10.9±0.2

17.1

50.7

5015

1×120

12.2±0.2

18.4

27.1

1813

3×120

12.2±0.2

18.4

54.1

5919

1×150

13.6±0.2

19.8

28.6

2118

3×150

13.6±0.2

19.8

57.4

6902

1×185

15.2±0.2

21.4

30.2

2499

3×185

15.2±0.2

21.4

61.1

8136

1×240

17.4±0.2

23.8

32.8

3103

3×240

17.4±0.2

23.8

66.8

10099

1×300

19.5±0.2

26.3

36.9

4116

3×300

19.5±0.2

26.3

72.7

12239

1×400

22.0±0.2

29.2

40.0

5008

3×400

22.0±0.2

29.2

81.0

15868

1×500

24.8±0.2

33.2

44.4

6222

3×500

24.8±0.2

33.2

90.1

19700

1×630

28.2±0.2

36.6

48.1

7695

3×630

28.2±0.2

36.6

98.3

24392

1×800

34.0±0.2

42.4

54.1

9734
