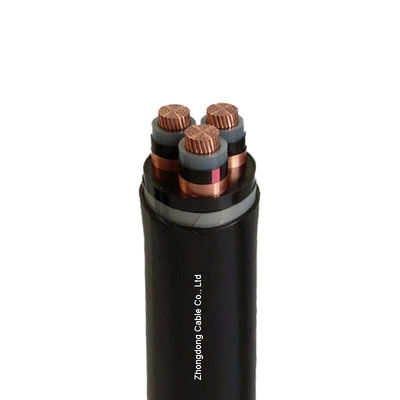

Copper Tape Shield Medium Voltage Armored Cable 6KV 10kV 600sq Underground Use

Large Image : Copper Tape Shield Medium Voltage Armored Cable 6KV 10kV 600sq Underground Use

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV
Model Number:	YJ(S)V62 YJ(S)V22

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Copper Tape Shield Medium Voltage Armored Cable 6KV 10kV 600sq Underground Use

Description

Armored:	Steel Tape	Sheath Material:	PVC
Insulation:	XLPE	Rated Voltage:	6/10kV
Conductor:	Copper	No Of Core:	3
Highlight:	Copper Tape Medium Voltage Armored Cable , 10kV Medium Voltage Armored Cable , Underground Use MV Armored Cable

Copper Tape Shield Medium Voltage 6/10kV Steel Tape Armoured 600sq Underground Use

Construction

Conductor: Circular compacted stranded Copper or aluminium
Conductor screen: Extruded semi-conductive compound
Insulation: XLPE
Insulation screen: Extruded semi-conductive compound
Metallic screen: Copper Wire
Binder tape: non-hygroscopic material
Inner covering(bedding): PVC
Metallic armor: Galvanized steel tape

Application

Suitable for urban underground power grids, power station outgoing lines, internal power supply lines of industrial and mining enterprises, etc.

Copper Tape Shield Medium Voltage Armored Cable 6KV 10kV 600sq Underground Use 1

Specification

YJV62 YJV22-6/10kV Cable Structure Parameters

Specs mm²	Conductor diameter mm	Outer thickness of insulation ±1.0mm	Approx outer diameter of cable mm	Approx cable weight kg/km
3×25	6.0±0.1	15.6	43.5	2765
3×35	6.6±0.2	16.2	44.8	3094
3×50	7.6±0.2	17.2	47.5	3626
3×70	9.2±0.2	18.8	51.3	4464
3×95	10.9±0.2	20.5	55.2	5439
3×120	12.2±0.2	21.8	58.3	6338
3×150	13.6±0.2	23.2	61.5	7312
3×185	15.2±0.2	24.8	65.3	859%
3×240	17.4±0.2	27.0	70.6	10543
3×300	19.5±0.2	29.1	75.6	12611
3×400	22.0±0.2	31.6	82.7	16102
3×500	24.8±0.2	35.2	91.0	19826
3×630	28.2±0.2	38.6	99.2	24528
