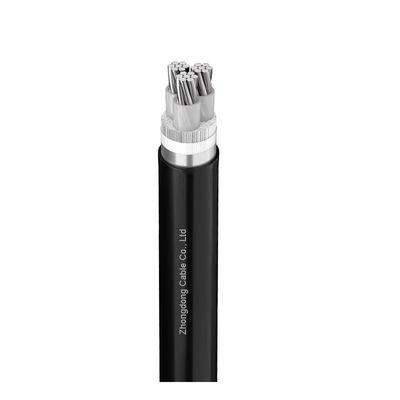

N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable

N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable
N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable
N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable

Large Image :  N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: NYBY NAYBY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable

Description
Voltage: 3.6/6kV Insulation: XLPE
Jacket: PVC Feature: LSZH
Amour: Steel Tape Application: Underground, Overhead, Indoor, Mining And Power Distribution Etc
Highlight:

1kV 3 Core Low Voltage Cable

,

NA2XBY LV Cable 1kV

,

N2XBY LV Cable

N2XBY NA2XBY Low Voltage Cable 3 Core 0.6/1kV 0.5 ~ 800MM2



Construction


  1. Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation: XLPE
  3. Filler: non-hygroscopic material
  4. Binder tape: non-hygroscopic material
  5. Sheath: PVC


Characteristics


  1. Test Voltage: 3.5kV 5min No Breakdown
  2. The ambient temperature for installation: ≥0℃.
  3. Maximum conductor temperature in normal operation:≤90℃.
  4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
  5. Permissible minimum bending radius:
  6. Single unarmoured cable: 20 x OD
  7. Multi-core unarmoured cable: 15 x OD
  8. Single armoured cable: 5 x OD
  9. Multi-core armoured cable: 12 x OD
  10. Note : OD=Overall Diameter of Cable



Specification



Specification

Outer diameter of conductor

Nominal sheath thickness

Approx. outer diameter of cable

Approx. weight of cable

mm2

mm

mm

mm

kg/km









CU

AL

3X1.5 RE

1.38

1.8

10.2

132

104

3X2.5 RE

1.78

1.8

11.1

168.7

122

3X4 RE

2.24

1.8

12.1

220.4

145.8

3X6 RE

2.76

1.8

13.2

296.6

184.7

3X10 CC

3.8

1.8

15.4

439.4

252.9

3X16 CC

4.8

1.8

17.6

645.9

347.4

3X25 CC

6

1.8

21

937.2

470.9

3X35 CC

7

1.8

23.2

1231.6

578.7

3X50 SM

8

1.8

22.1

1611.4

678.8

3X70 SM

9.5

1.9

25.7

2213.1

907.4

3X95 SM

11

2

28.7

2938.7

1166.6

3X120 SM

12.4

2.1

32.5

3687

1448.5

3X150 SM

13.8

2.3

36.8

4598.4

1800.4

3X185 SM

15.4

2.4

40.9

5654.8

2203.8

3X240 SM

17.5

2.6

45.7

7268

2791.1

3X300 SM

19.6

2.8

50.5

9019.7

3423.5



Application


  1. Power distribution in industrial facilities
  2. Underground cabling for urban grids
  3. Wind and solar farm connections
  4. Mining and offshore installations requiring rugged protection

N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable 0N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable 1N2XBY NA2XBY 3 Core Low Voltage Cable 0.6/1kV 0.5~800MM2 lV cable 2
