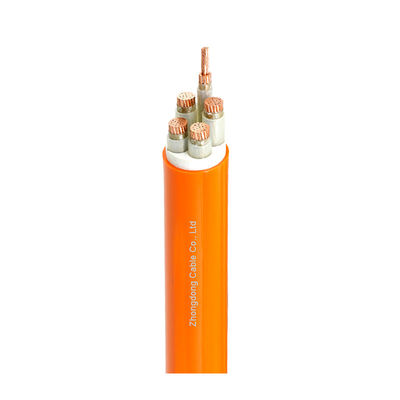

Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection

Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection
Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection
Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection

Large Image :  Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection

Description
Voltage: 0.6/1kV Insulation: PVC
Jacket: PVC Feature: LSZH
Application: FIame Retardant No Of Core: 4-1
Highlight:

Flame Retardant Low Voltage Power Cable

,

PVC Insulated Low Voltage Power Cable

,

Low Voltage Power Cable 0.6KV

Flame Retardant Low Voltage Power Cable 0.6/1Kv Pvc Insulated for Electrical Connection





Application



Flame-retardant low-voltage PVC (polyvinyl chloride) insulated cables are specifically designed to enhance fire safety while maintaining the versatility of standard PVC cables. These cables are widely used in environments where fire resistance, reduced flame propagation, and minimal smoke emission are critical.





Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection 0Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection 1Flame Retardant Low Voltage Power Cable 0.6KV 1KV PVC Insulated For Electrical Connection 2





Construction



  1. Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation: PVC
  3. Filler: non-hygroscopic material
  4. Binder tape: non-hygroscopic material
  5. Sheath: PVC



Characteristics



  1. Test Voltage: 3.5kV 5min No Breakdown
  2. The ambient temperature for installation: ≥0℃.
  3. Maximum conductor temperature in normal operation:≤90℃.
  4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
  5. Permissible minimum bending radius:
  6. Single unarmoured cable: 20 x OD
  7. Multi-core unarmoured cable: 15 x OD
  8. Single armoured cable: 5 x OD
  9. Multi-core armoured cable: 12 x OD
  10. Note : OD=Overall Diameter of Cable





Specification



Specs

mm²

Conductor diameter
mm

Nominal  thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

4×2.5+1×1.5

1.78/1.38

0.7/0.7

1.8

12.9

248

4×4+1×2.5

2.25/1.78

0.7/0.7

1.8

14.1

332

4×6+1×4

2.76/2.25

0.7/0.7

1.8

15.4

440

4×10+1×6

4.0/2.76

0.7/0.7

1.8

18.4

635

4×16+1×10

5.0/4.0

0.7/0.7

1.8

21.2

930

4×25+1×16

6.1/5.0

0.9/0.7

1.8

25.2

1417

4×35+1×16

7.2/5.0

0.9/0.7

1.8

27.7

1813

4×50+1×25

8.4/6.1

1.0/0.9

1.9

31.7

2438

4×70+1×35

10.0/7.2

1.1/0.9

2.1

36.7

3432

4×95+1×50

12.0/8.4

1.1/1.0

2.2

42.0

4641

4×120+1×70

13.0/10.0

1.2/1.1

2.4

45.9

5867

4×150+1×70

14.9/10.0

1.4/1.1

2.5

51.3

7092

4×185+1×95

16.5/12.0

1.6/1.1

2.7

57.1

8891

4×240+1×120

18.4/13.5

1.7/1.2

2.9

63.0

11473

4×300+1×150

21.0/14.9

1.8/1.4

3.1

70.5

14294

4×400+1×185

23.4/16.5

2.0/1.6

3.4

78.3

18208
