Aluminium Conductor Medium Voltage Cable 3 Core Steel Tape Armoured 21/35kV

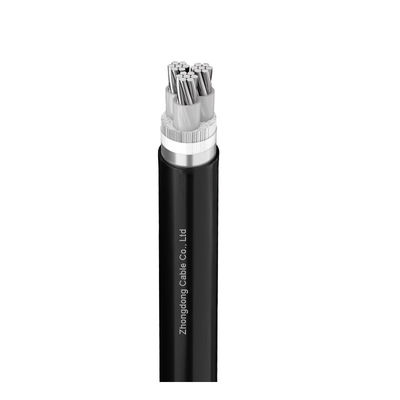

Large Image : Aluminium Conductor Medium Voltage Cable 3 Core Steel Tape Armoured 21/35kV

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CE,IEC,TUV

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Aluminium Conductor Medium Voltage Cable 3 Core Steel Tape Armoured 21/35kV

Description

Insulation Material:	Xlpe	Conductor Material:	Aluminum/copper
Sheath:	PVC	Armour:	STA
Type:	Medium Voltage	Voltage:	21/35kV
Highlight:	Aluminium Conductor Medium Voltage Cable , Medium Voltage Cable 3 Core

Aluminium Conductor Medium Voltage Cable 3 core Steel Tape Armoured AL/XLPE/PVC/ 21/35kV

Application

This product is used in power grids or industrial installations with a rated voltage of 35kV or below. Having a job
High temperature, large current carrying capacity, simple structure, light weight, unrestricted installation by drop, medium
Features such as minimal damage, resistance to chemical corrosion and environmental stress, and easy maintenance.

Aluminium Conductor Medium Voltage Cable 3 Core Steel Tape Armoured 21/35kV 0

Construction

Conductor:Class 2 Aluminium/Copper circular, stranded
Conductor Screen:Semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation :XLPE (Cross-Linked Polyethylene)
Insulation Screen :Semi-conductive XLPE (Cross-Linked Polyethylene)
Tape Plastic tape is applied over the screen
Filler Extruded polymeric material
Bedding PVC (Polyvinyl Chloride)
Armour :STA (Galvanized Steel Wire Armoured)
Sheath :Extruded PVC (Polyvinyl Chloride) type ST2


Product parameters

			Specification

			Outer diameter

			Approx. outer diameter of cable

			Approx. weight of cable

			Max. D.C. resistance of conductor at 20℃

			mm2

			mm

			mm

			kg/km

			Ω/km

			Cu

			Al

			Cu

			Al

			3×50

			8.4

			80.4

			10082

			9222

			0.387

			0.641

			3×70

			10

			84.1

			11219

			9979

			0.268

			0.443

			3×95

			11.5

			87.6

			12487

			10762

			0.193

			0.32

			3×120

			13

			92

			13784

			11611

			0.153

			0.253

			3×150

			14.5

			94.4

			14923

			12236

			0.124

			0.206

			3×185

			16.2

			98.8

			16650

			13294

			0.0991

			0.164

			3×240

			18.4

			103.3

			18842

			14427

			0.0754

			0.125

			3×300

			20.5

			108.2

			21293

			15746

			0.0601

			0.1

			3×400

			23.5

			114.7

			24939

			17862

			0.047

			0.0778
