KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation

KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation
KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation
KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation

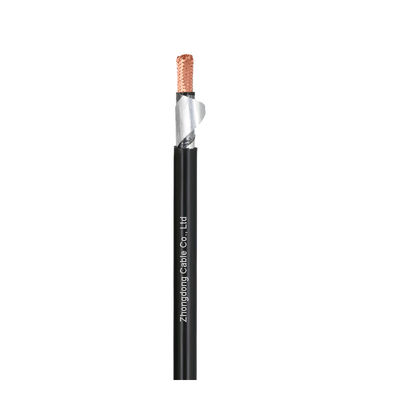

Large Image :  KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Payment & Shipping Terms:
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation

Description
Usage: Access Control System Insulation: XLPE PE PVC
Voltage: 300/500V ,450/750V Armour: Steel Tape
Conductor Material: Copper Packing: Neutral Carton Packing Or Customized
Highlight:

KVVP Electrical Power Control Cable

,

Electrical Power Control Cable For Instrumentation

,

PVC Insulation Sheilding Control Cable

KVVP Electrical Power Control Cable with PVC Insulation Sheilding for Instrumentation Applications





Application



Control cables are specialized cables designed to transmit low-voltage signals or commands for monitoring, regulating, and automating electrical systems. They are critical in industrial, commercial, and infrastructure settings where precision and reliability are paramount



KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation 0KVVP Electrical Power Control Cable PVC Insulation Sheilding For Instrumentation 1



Construction



  1. Conductor: Solid or Stranded Copper Conductor
  2. Inner Sheath: PVC
  3. Armour: STA
  4. Sheath: Flame Retardant PVC







Description



  1. Rated voltage 450/750V or less,The control cable can be made as flame retardant when customer required.
  2. Laying Temperature:during laying environment temperature shall not be less than 0℃,the cable should be preheated.
  3. Operating Temperature:max permissible continuous operating temperature of conductor shall not exceed 70℃.
  4. Bending Radius:16D for armored cable





Product range







Cross-Sectional
Area mm2

Thickness of
Insulation mm

Thickness of
Steel Tape mm

Thickness of
Sheath mm

Overall Diameter
mm

Min resistance of
insulation at
70ºC MΩ/km

Max.D.C resistance
of at 20ºC
MΩ/km

Approx Weight
(kg/km)

min

max

4x2.5

0.8

2x0.2(0.3)

1.5

13.4

16.1

0.001

7.41

450

4x4

0.8

2x0.2(0.3)

1.5

14.4

17.4

0.0085

4.61

505

4x6

0.8

2x0.2(0.3)

1.5

15.6

18.8

0.007

3.08

619

4x10

1

2x0.2(0.3)

1.7

19.4

23.5

0.0065

1.83

947

5x2.5

0.8

2x0.2(0.3)

1.5

14.3

17.2

0.001

7.41

506

5x4

0.8

2x0.2(0.3)

1.5

15.4

18.6

0.0085

4.61

586

5x6

0.8

2x0.2(0.3)

1.7

16.7

20.2

0.007

3.08

737

5x10

1

2x0.2(0.3)

1.7

21

25.4

0.0065

1.83

1125

7x0.75

0.6

2x0.2(0.3)

1.5

11.8

14.2

0.012

24.5

317

7x1.0

0.6

2x0.2(0.3)

1.5

12.2

14.7

0.011

18.1

425

7x2.5

0.7

2x0.2(0.3)

1.5

13.5

16.3

0.01

7.41

554

7x4

0.8

2x0.2(0.3)

1.5

15.2

18.4

0.0085

4.61

701

7x6

0.8

2x0.2(0.3)

1.7

18

21.7

0.007

3.08

900

7x10

1

2x0.2(0.3)

1.7

22.7

27.4

0.0065

1.83

1397

10x0.75

0.6

2x0.2(0.3)

1.5

13.8

16.7

0.012

24.5

449

10x1

0.6

2x0.2(0.3)

1.5

14.4

17.4

0.011

18.1

558

10x1.5

0.7

2x0.2(0.3)

1.5

16.1

19.5

0.011

12.1

753

10x2.5

0.8

2x0.2(0.3)

1.7

18.8

22.7

0.01

7.41

956

10x4

0.8

2x0.2(0.3)

1.7

20.5

24.8

0.0085

4.61

1203

10x6

0.8

2x0.2(0.3)

1.7

22.5

27.1

0.007

3.08

1534
