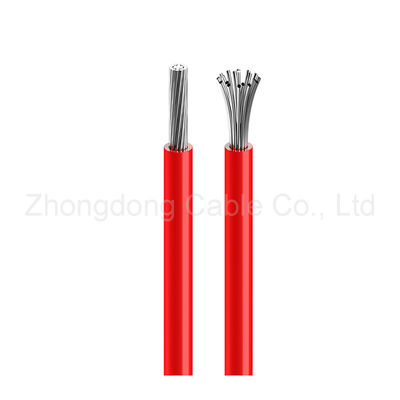

PV1-F Solar Cable Electric PV Wire 50MM 70MM Copper Conductor

Application

V1-F cable is specifically designed for photovoltaic (PV) systems, serving as a critical component in solar energy installations. Its primary applications include:

1. ‌Interconnecting solar panels‌: Used to link photovoltaic modules in arrays.
2. ‌DC side wiring‌: Connects solar panels to inverters, charge controllers, or junction boxes.
3. ‌Outdoor and indoor installations‌: Suitable for both rooftop PV systems and large-scale solar farms.
4. ‌Exposed or fixed installations‌: Can be mounted on cable trays, conduits, or directly on surfaces, thanks to its UV and weather resistance.

Cable performance

        Properties such as moisture and heat resistance, high and low temperature resistance, acid and alkali resistance,ozone resistance, UV resistance, flame retardancy, etc

Description

1. AC rated voltage(U0/U):0.6/1.0kV
2. DC rated volate(U0):1.8kV
3. Minimum bending radius: Φ ≦ 12mm:3XD   Φ > 12mm:4XD
4. Maximum Voltage: Ambient Temperature: -40℃ ℃~ +90℃
5. Short Circuit Temperature: 200℃/5 sec

Thermal Properties:

1. Maximum Voltage: Ambient Temperature: -40ºC ~ +90ºC
2. Maximum Temperature at Conductor: 120ºC (20000h) according to IEC/EN 60216-1
3. Short Circuit Temperature: 200ºC/5 seconds
4. Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
5. High Temperature Pressure Test: According to EN 60811-3-1
6. Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity

Specifications
