BV BVV Copper Conductor Electrical Wire Heat Resistant With PVC Insulation Sheath

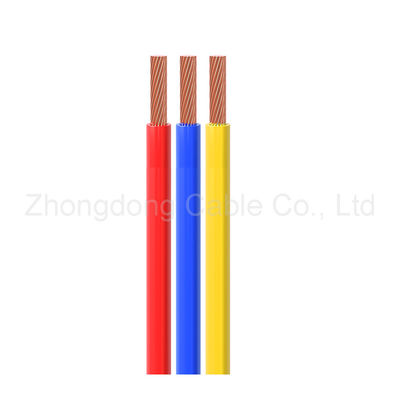

Large Image : BV BVV Copper Conductor Electrical Wire Heat Resistant With PVC Insulation Sheath

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CE,TUV,CCC,UL
Model Number:	BVR

Payment & Shipping Terms:

Minimum Order Quantity:	100m
Price:	Negotiable
Packaging Details:	Steel Wooden Drum
Delivery Time:	10Days
Payment Terms:	T/T,L/C
Supply Ability:	1000KM/WEEK

Contact Now

BV BVV Copper Conductor Electrical Wire Heat Resistant With PVC Insulation Sheath

Description

Rated Voltag:	450/750V	Insulation:	PVC
Temperature:	70°C Max	Insulation Thickness:	0.6mm ~ 1.4mm
Conductor Size:	0.75mm² To 35mm²	Conductor Material:	Copper
Highlight:	Copper Conductor Electrical Wire Heat Resistant , BVV Copper Conductor Electrical Wire , PVC Insulation Sheath Electrical Wire

House Wire Electrical Wire BV/BVV Copper Conductor PVC Insulation Sheath

Application

BV/BVV cable (PVC-insulated copper conductor cable) is a widely used electrical wire in building wiring and fixed installations. Its primary applications include:

‌Residential and commercial buildings‌: Used for power distribution in lighting circuits, sockets, switches, and household appliances.
‌Internal wiring of equipment‌: Connects electrical components in control panels, machinery, and industrial devices.
‌Fixed installations‌: Suitable for concealed or surface-mounted wiring in walls, conduits, or cable trays.
‌Low-voltage systems‌: Deployed in AC circuits with voltages up to 450/750 V (as per IEC 60227 standards).

BV BVV Copper Conductor Electrical Wire Heat Resistant With PVC Insulation Sheath 0

Features

High Flexibility: Stranded copper for easy bending and tight-space installation (e.g., conduits, concealed wiring).
Safety: Flame-retardant PVC insulation, compliant with GB/T 5023 (optional IEC 60332 flame-retardant grade).
Easy Installation: Better contact stability than solid-core BV /BVV cables.

Parameter

Type	Nom. Cross section mm2	No ./Dia. Of Strand mm	Nom. Thickness of insulation mm	Average. OD (Max.) mm	Max. DC conductor resistance at 20ºC Ω/km		Min. insulation resistance at 70ºC MΩ·km
Type	Nom. Cross section mm2	No ./Dia. Of Strand mm	Nom. Thickness of insulation mm	Average. OD (Max.) mm	Copper	Tinned copper	Min. insulation resistance at 70ºC MΩ·km
60227 IEC 01(BV) 450/750V	1.5	1/1.37	0.7	3.3	12.1	12.2	0.011
	1.5	7/0.52	0.7	3.4	12.1	12.2	0.010
	2.5	1/1.76	0.8	3.9	7.41	7.56	0.010
	2.5	7/0.68	0.8	4.2	7.41	7.56	0.009
	4	1/2.24	0.8	4.4	4.61	4.70	0.0085
	4	7/0.85	0.8	4.8	4.61	4.70	0.0077
	6	1/2.73	0.8	4.9	3.08	3.11	0.0070
	6	7/1.04	0.8	5.4	3.08	3.11	0.0065
	10	7/1.33	1.0	6.8	1.83	1.84	0.0065
	16	7/1.70	1.0	8.0	1.15	1.16	0.0050
	25	7/2.12	1.2	9.8	0.727	0.734	0.0050
	35	7/2.50	1.2	11.0	0.524	0.529	0.0040
	50	19/1.78	1.4	13.0	0.387	0.391	0.0045
	70	18/2.12	1.4	15.0	0.268	0.270	0.0035
	95	19/2.50	1.6	17.0	0.193	0.195	0.0035
	120	37/2.00	1.6	19.0	0.153	0.154	0.0032
