LSZH Low Voltage STA Low Smoke Zero Halogen Cable N2X2Y 4core

Large Image : LSZH Low Voltage STA Low Smoke Zero Halogen Cable N2X2Y 4core

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,CCC,TUV,CE,VDE
Model Number:	Low Voltage

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

LSZH Low Voltage STA Low Smoke Zero Halogen Cable N2X2Y 4core

Description

Insulation Material:	XLPE	Application:	Construction
Conductor Material:	Copper	Sheath:	PVC
Cores:	4core	Armour:	Unarmoured
Highlight:	Low Smoke Zero Halogen Cable Low Voltage , 4core Low Voltage STA Cable , N2X2Y Low Smoke Zero Halogen Cable

LSZH Low Voltage STA Low Smoke Zero Halogen Cable N2X2Y

Applications

‌Industrial Machinery‌
‌Public Infrastructure‌
‌Renewable Energy Systems‌
‌Underground or Duct Installation
‌Temporary Power Supply‌
‌Fire-Sensitive Areas‌

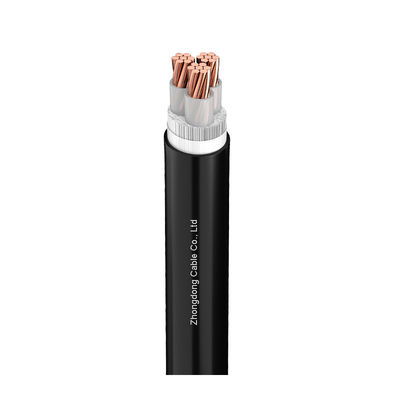

LSZH Low Voltage STA Low Smoke Zero Halogen Cable N2X2Y 4core 0

Construction

Conductor :Class 2 stranded copper conductor
Insulation :XLPE (Cross-Linked Polyethylene)
Bedding :LSZH (Low Smoke Zero Halogen)
Armour :STA (Steel Tape Armour)
Sheath :LSZH (Low Smoke Zero Halogen)

Parameter

No.cores x cross-sec.	Insulation thickness	Inner Sheath thickness	Sheath thickness	Outer Ø approx.	weight approx.	Current ratings in air 30℃	Current ratings buried 20℃
mm²	mm	mm	mm	mm	kg / km	A	A
3 x 35	2.5	1.3	2.3	43.5	2993	144	181
3 x 50	2.5	1.3	2.4	46.5	3601	172	215
3 x 70	2.5	1.4	2.5	49.3	4368	213	263
3 x 95	2.5	1.4	2.6	54.3	5348	261	315
3 x 120	2.5	1.5	2.8	57.9	6303	301	358
3 x 150	2.5	1.6	2.9	61.7	7405	341	402
3 x 185	2.5	1.6	3.0	65.4	8646	392	456
3 x 240	2.6	1.7	3.2	70.7	10573	459	527
3 x 300	2.8	1.8	3.4	77.3	12779	532	599
3 x 400	3.0	2.0	3.7	88.1	17225	624	685
