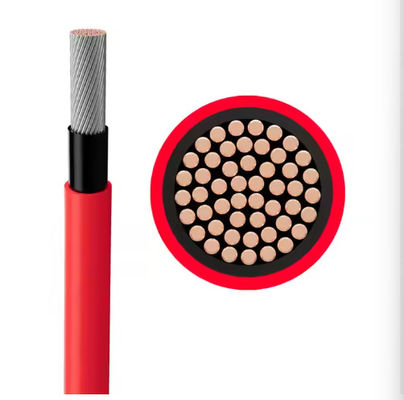

Tinned Copper DC Photovoltaic Solar Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V

Tinned Copper DC Photovoltaic Solar Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V
Tinned Copper DC Photovoltaic Solar Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V
Tinned Copper DC Photovoltaic Solar Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V Tinned Copper DC Photovoltaic Solar Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V

Large Image :  Tinned Copper DC Photovoltaic Solar Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Model Number: PV1-F
Payment & Shipping Terms:
Minimum Order Quantity: To be negotiated
Price: To be negotiated
Packaging Details: Steel wooden drum, Coil In Foil / Drum
Delivery Time: 7-30 days
Payment Terms: T/T,L/C
Supply Ability: 100KM/Week
Contact Now

Tinned Copper DC Photovoltaic Solar Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V

Description
Uv Resistance: Yes Insulation Material: Cross-linked Polyethylene (XLPE)
Certifications: TUV, UL, CE Conductor Material: Tinned Copper
Halogen Free: Yes Application: Solar Power Systems
Highlight:

tinned copper photovoltaic solar cable

,

4mm2 tinned copper solar pv cable

Tinned Copper Dc Pv Photovoltaic Solar Wire Cable for Solar Panels 4mm2 6mm2 10mm2 16mm2 1000V 1500V



Application



Solar cables are specially designed for connecting photovoltaic system components, whether indoors or outdoors. They excel in environments with high mechanical demands and extreme weather conditions.





Cable performance



        Properties such as moisture and heat resistance, high and low temperature resistance, acid and alkali resistance,ozone resistance, UV resistance, flame retardancy, etc







Description



  1. AC rated voltage(U0/U):0.6/1.0kV
  2. DC rated volate(U0):1.8kV
  3. Minimum bending radius: Φ ≦ 12mm:3XD   Φ > 12mm:4XD
  4. Maximum Voltage: Ambient Temperature: -40℃ ℃~ +90℃
  5. Short Circuit Temperature: 200℃/5 sec



Thermal Properties:



  1. Maximum Voltage: Ambient Temperature: -40ºC ~ +90ºC
  2. Maximum Temperature at Conductor: 120ºC (20000h) according to IEC/EN 60216-1
  3. Short Circuit Temperature: 200ºC/5 seconds
  4. Thermal Endurance Test: According to EN 60216-2 (temperature index +120° C)
  5. High Temperature Pressure Test: According to EN 60811-3-1
  6. Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity



Specifications

Cable structure parameters



Cross section(mm²)

Conductor Construction(no/mm)

Conductor Stranded OD.max(mm)

Cable OD.(mm)

Approximate weight of cable
kg/km

Max Cond Resistance(Ω/km,20°C)

1×1.5

48/0.20

1.58

4.8

35

13.7

1×2.5

77/0.20

2.02

5.2

47

8.21

1×4

56/0.285

2.46

5.7

64

5.09

1×6

84/0.285

3.01

6.3

86

3.39

1×10

77/0.40

4.1

7.2

128

1.95

1×16

7×17/0.40

5.5

8.9

196

1.24

1×25

7×27/0.40

6.7

10.7

299

0.795

1×35

7×38/0.40

8.2

12.4

407

0.565

1×50

19×20/0.40

10.0

14.6

571

0.393

1×70

19×28/0.40

11.6

16.4

773

0.277

1×95

19×38/0.40

13.5

18.5

1024

0.210

1×120

24×38/0.40

14.4

19.8

1266

0.164

1×150

30×38/0.40

16.2

22.2

1584

0.132

1×185

37×38/0.40

18.2

25.0

1967

0.108

1×240

48×38/0.40

20.6

27.8

2518

0.0817



Long term allowable current carrying capacity



Installation method

Single cable in air

Single cable on object surface

Two contacting cables on object surface

Cross section(mm²)

Carrying capacity(A)

1.5

30

29

24

2.5

41

39

33

4

55

52

44

6

70

67

57

10

98

93

79

16

132

125

107

25

176

167

142

35

218

207

176

50

276

262

221

70

347

330

278

95

416

395

333

120

488

464

390

150

566

538

453

185

644

612

515

240

775

736

620

Operation temperature

120℃

Ambient temperature

60℃



Correction and Adjustment Factors



Ambient temperature(℃)(air)

≦60

70

80

90

100

110

Correction factor

1

0.91

0.82

0.71

0.58

0.41
