11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core

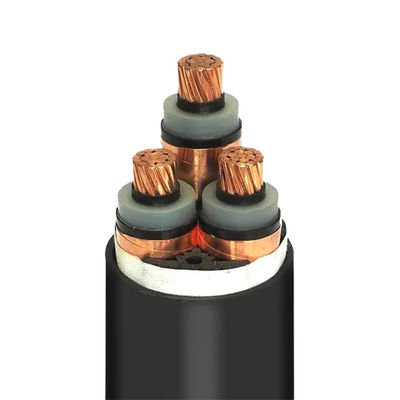

Large Image : 11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV
Model Number:	CVT

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core

Description

Armored:	Unarmored	Sheath Material:	PVC
Conductor Size:	Varies	Insulation:	Insulated
Rated Voltage:	6/10kV	Length:	Varies

11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core

Application

1. Industrial power distribution: factory power supply, mining and petrochemical industry
2. Construction and infrastructure: commercial buildings, subways and tunnels
3. Energy and power transmission: substation connection, new energy projects
4. Underground and submarine laying: underground cable engineering, submarine cable

Construction

11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core 0

Conductor: Circular compacted stranded Copper or aluminium
Conductor screen: Extruded semi-conductive compound
Insulation: XLPE
Insulation screen: Extruded semi-conductive compound
Metallic screen: Copper Wire
Binder tape: non-hygroscopic material
Inner covering(bedding): PVC(Vinyl)

Specification

Specs mm²	Conductor diameter mm	Nominal thickness of insulation mm	Outside diameter of insulation ±1.0mm	Nominal thickness of sheath mm	Approximate outer diameter of cable mm	Approximate cable weight kg/km
3×25	6.0	4.5	17.0	2.4	47.0	2274
3×35	7.0	4.5	18.0	2.5	49.5	2673
3×50	8.2	4.5	19.2	2.6	52.3	3156
3×70	10.0	4.5	20.8	2.7	55.9	3932
3×95	11.6	4.5	22.6	2.8	60.0	4879
3×120	13.0	4.5	24.0	2.9	63.2	5743
3×150	14.4	4.5	25.4	3.0	66.5	6700
3×185	16.1	4.5	27.2	3.1	70.6	7919
3×240	18.4	4.5	29.4	3.3	75.7	9782
3×300	20.6	4.5	31.6	3.4	80.7	11755
3×400	23.4	4.5	34.4	3.7	87.4	14550
3×500	26.6	4.5	38.5	3.8	97.3	18348
3×630	30.0	4.5	41.9	4.1	105.3	22765

Specs mm²	Maximum Loading Capacity m
Specs mm²	2m (200kg)	2.2 m (220kg)	2.4 m (240kg)	2.5m (260kg)	2.6 m (280kg)	2.8m (300kg)	3m (360kg)	3.15m (400kg)
3×25	801	927	1237	1425	1500	1913	2243	2670
3×35	775	428	486	549	579	824	954	1048
3×50	631	738	1010	1173	1235	1540	1814	2117
3×70	610	598	840	935	985	1312	1476	1800
3×95	457	573	646	596	806	1047	1173	1698
3×120	436	448	616	733	773	1007	1133	1354
3×150	351	423	514	578	610	817	1092	1311
3×185	-	318	489	552	582	783	874	1058
3×240	-	323	464	526	554	618	842	978
3×300	-	-	348	397	419	588	613	943
3×400				375	396	446	585	693
3×500	-	-	-	-	-	424	401	667
3×630	-	-	-	-	-		377	458

FAQ

1. Q: What international standards do your cables comply with?
A: Our cables meet IEC (International Electrotechnical Commission), BS (British Standards), UL (Underwriters Laboratories), and ASTM (American Society for Testing and Materials). Specific certifications (e.g., CE, RoHS) are available upon request.

2. Q: What conductor materials do you offer?
A: We provide copper (Cu) for high conductivity and aluminum (Al) for cost-sensitive projects.

3. Q: Can you customize cable length, color, or markings?
A: Yes. Custom lengths (e.g., drums, reels), color-coding, and surface printing (voltage, brand) are available.

4. Q: What packaging options do you provide?
A: Standard packaging includes wooden drums or steel reels with waterproof wrapping. Anti-rust treatments are applied for sea freight.

Logistics and packaging

11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core 1

Application Case

11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core 2

Factory QC Machine

11KV 22KV 33KV Medium Voltage Cable XLPE/Vinyl/Cu 3 Core 5
