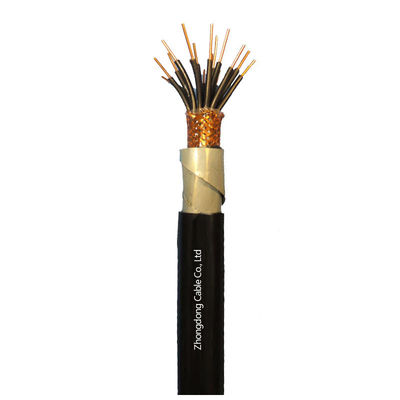

Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables

Large Image : Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	ISO,VDE,ISO,TUV
Model Number:	KVVP NYCY

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Steel Drums
Delivery Time:	10Work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables

Description

Conductor Material:	Copper	Insulation Material:	PVC
Application:	Industrial	Jacket:	PVC
Color:	Optional	Cores:	4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables

APPLICATION

This product is suitable for use in control, monitoring circuits, and protection circuits in circuits with a rated voltage of 450/750V and below

CONSTRUCTION

Conductor:Circular solid copper conductor(A) or circular stranded copper conductor(B)

Insulation:Polyvinyl chloride (PVC)

Filler:Polypropylene mesh tear rope or flame-retardant filling

Braiding:Soft round copper wire or tin plated round copper wire

Outer sheath:Polyvinyl chloride (PVC)

Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables 0

CHARACTERISTIC

Voltage Rating Uo/U: 450/750V

Temperature Rating

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -15℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: 6D (D is the actual outer diameter of the cable)

Specification

No of core: 2-61 core

Nominal cross-section of conductor: 0.5-10mm²

TYPE

Type	Name	Applying bound
KVV	Copper conductor PVC insulated and sheathed control cable	For laying indoors, in trenches, and in ducts for the fixed installation
KVVP	Copper conductor PVC insulated & sheathed copper wire braiding screened control cable	For laying indoors, in trenches, and in ducts for the fixed installation
KVVP2	Copper conductor PVC insulated and sheathed control cable with steel tape shied	For laying indoors, in trenches, and in ducts for the fixed installation
KVV22	Copper conductor PVC insulated and sheathed control cable with steel tape armoured	For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation
KVVR	Copper conductor PVC insulated flexible control cable	For laying indoors, movable and flexible
ZR-KVVP	Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable	Fixed laying indoors with capability of moving and screening
ZR-KVV	Copper conductor PVC insulated and sheathed flame retardant control cable	For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
ZR-KVVP2	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield	For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance
ZR-KVV22	Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured	For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation
ZR-KVVR	Copper conductor PVC insulated and sheathed flame retardant flexible control cable	For laying indoors, and the cable should be flame-retardant flexible and movable

ABOUT US

Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables 3

QC INSPECTION

APPLICATION

Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables 5

Copper Wire Braided Shielded Control Cable KVVP NYCY Flame-retardant CU/PVC/CWS/PVC Cables 7

FAQ

Q1.Are you a factory or trading company?

A1: We are a manufacturer.

Q2:How to get a free sample?
A2.Ofcourse,we could provide free samples and you charge the shipping cost
Q3. How long delivery time?
A3.It usualy take 7-10days for sample order and 25-30days for big order.
Q4.What is your payment term?
A4.Ourpaymenterm is usualy T/T30% in advanced,the balance before picking up the goods
Q5. what is the package of the cable ?
A5.nepackagesusuaywoendrumorstelwooenarumorcoasoacoringto customersreurement
Q6.Do you accept OEM service?
A6.Yes,we wil customize the products according to your specific requirements
