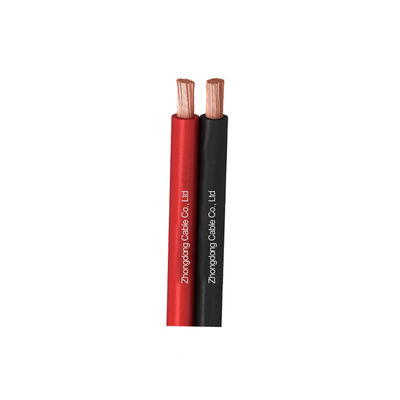

AC1.0/1.0kV Solar Cable Panel Cable PV Cable H1Z2Z2-K Halogen Free Flame Retardant Sheath
APPLICATION
DC Solar Cables
The interconnection between photovoltaic modules
Parallel connection between series and between modules and DC distribution boxes (combiner boxes)
Connection between DC distribution boxes and inverters.
AC Solar Cables
Connecting inverters to step-up transformers
The connection between the step-up transformer and the distribution equipment
The connection between power distribution equipment and the power grid or user
CONSTRUCTION
Conductor: Class 5 tinned copper conductors
Insulation: Halogen free flame-retardant insulation material for solar cables
Outer sheath: Halogen free flame retardant sheath material for solar cables
STANDARD
EN50618:2014
CHARACTERISTIC
Voltage Rating Uo/U
1.0/1.0kV
DC Voltage Rating Uo/U
1.5kV
Temperature Rating
Maximum operating temperature of conductor:+120℃
Operating ambient temperature: -40℃~+90℃
Cable laying temperature:Not less than -25℃
Minimum Bending Radius
Single core:6D
(D is the actual outer diameter of the cable)
PARAMETERS
|
Cross section(mm²)
|
Conductor Construction(no/mm)
|
Conductor Stranded OD.max(mm)
|
Cable OD.(mm)
|
Approximate weight of cable
kg/km
|
Max Conductor Resistance(Ω/km,20°C)
|
|
1×1.5
|
48/0.20
|
1.58
|
4.8
|
35
|
13.7
|
|
1×2.5
|
77/0.20
|
2.02
|
5.2
|
47
|
8.21
|
|
1×4
|
56/0.285
|
2.46
|
5.7
|
64
|
5.09
|
|
1×6
|
84/0.285
|
3.01
|
6.3
|
86
|
3.39
|
|
1×10
|
77/0.40
|
4.1
|
7.2
|
128
|
1.95
|
|
1×16
|
7×17/0.40
|
5.5
|
8.9
|
196
|
1.24
|
|
1×25
|
7×27/0.40
|
6.7
|
10.7
|
299
|
0.795
|
|
1×35
|
7×38/0.40
|
8.2
|
12.4
|
407
|
0.565
|
|
1×50
|
19×20/0.40
|
10.0
|
14.6
|
571
|
0.393
|
|
1×70
|
19×28/0.40
|
11.6
|
16.4
|
773
|
0.277
|
|
1×95
|
19×38/0.40
|
13.5
|
18.5
|
1024
|
0.210
|
|
1×120
|
24×38/0.40
|
14.4
|
19.8
|
1266
|
0.164
|
|
1×150
|
30×38/0.40
|
16.2
|
22.2
|
1584
|
0.132
|
|
1×185
|
37×38/0.40
|
18.2
|
25.0
|
1967
|
0.108
|
|
1×240
|
48×38/0.40
|
20.6
|
27.8
|
2518
|
0.0817
|
