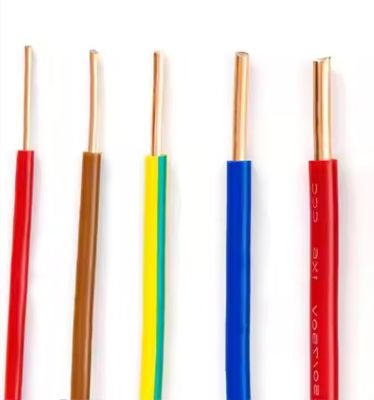

H05V-R Electrical Wire PVC Insulated Building Wire DIN VDE 0281-3 DIN EN 60228 BS6004
APPLICATION
BV wire, abbreviated as plastic copper wire, is also known as copper core PVC insulated hook up wire. V represents the insulation of polyvinyl chloride. Suitable for cables and wires used in power plants, daily appliances, instruments, and telecommunications equipment with AC voltage of 450/750V and below.
CONSTRUCTION
Conductor : Stranded bare copper
Insulation: PVC (Polyvinyl chloride)
FEATURE
Voltage Rating: 450/750V or 300/500V
Temperature Rating
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -15℃~+40℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius
6D (D is the actual outer diameter of the cable)
PARAMETERS
| Cross Section |
Conductor Construction |
Insulation Thickness |
Overall Diameter Max |
Min Insulation Resistance@ 70ºC |
Weight Approx |
| (mm2) |
(No/mm) |
(mm) |
(mm) |
(ohm/Km) |
(Kg/Km) |
| 1x0.75 |
7/0.97 |
0.6 |
2.8 |
0.012 |
11 |
| 1x1.0 |
7/0.43 |
0.6 |
3 |
/ |
14 |
| 1x1.5 |
7/0.52 |
0.7 |
3.4 |
0.01 |
21 |
| 1x2.5 |
7/0.67 |
0.8 |
4.2 |
0.009 |
32 |
| 1x4 |
7/0.85 |
0.8 |
4.8 |
0.008 |
45 |
| 1x6 |
7/1.04 |
0.8 |
5.4 |
0.007 |
65 |
| 1x10 |
7/1.35 |
1 |
6.8 |
0.007 |
110 |
| 1x16 |
7/1.70 |
1 |
8 |
0.005 |
165 |
| 1x25 |
7/2.14 |
1.2 |
9.8 |
0.005 |
264 |
| 1x35 |
7/2.52 |
1.2 |
11 |
0.004 |
360 |
| 1x50 |
19/1.78 |
1.4 |
13 |
0.005 |
490 |
| 1x70 |
19/2.14 |
1.4 |
15 |
0.004 |
685 |
| 1x95 |
19/2.52 |
1.6 |
17.5 |
0.004 |
946 |
| 1x120 |
37/2.03 |
1.6 |
19 |
0.003 |
1181 |
| 1x150 |
37/2.25 |
1.8 |
21 |
0.003 |
1453 |
| 1x185 |
37/2.52 |
2 |
23.5 |
0.003 |
1821 |
| 1x240 |
61/2.24 |
2.2 |
26.5 |
0.003 |
2383 |
| 1x300 |
61/2.50 |
2.4 |
29.5 |
0.003 |
2983 |
| 1x400 |
61/2.85 |
2.6 |
33.5 |
0.003 |
3800 |
FACTORY
SHOW CASE ( Inner Mongolia)
FAQ
Q1:Are you factory or trader?
A1:We are factory,We have production bases in Hebei province
Q2 :How about your delivery time ?
A2: Generally speaking, we can finish the production and deliver the goods within 7 days.If your order is large, please consult our sales staff for the specific production time.
Q3 :Can you offer sample service?
A3 :Yes,we can offer free sample,but the shipping cost need to be charged by you.
Q4 :How about your after-sale service?
A4 :We have a professional sales team to accurately understand your needs before the sale and try to avoid problems. After-sales,if you have any questions about the product, you are welcome to consult.
Q5 :Can you accept OEM?
A5 : Yes,We can.Please feel free to tell us your requirements, and our professional engineers will help you make the most suitable plan.
Q6 : Why choose your company?
A6 :We have over 20 years wires and cables production and export experience,We know well every detail during exporting and Each index of cable.So it will be much easier to cooperate with us
