Low Voltage Cable Non-Armoured Aluminum Power Cable NA2XY Single Core

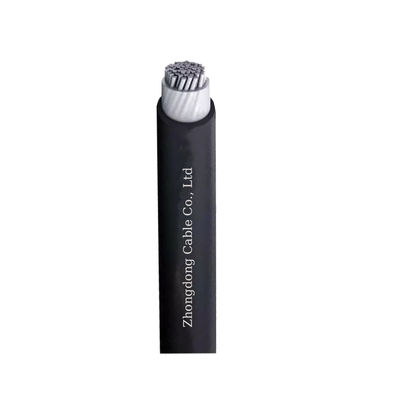

Large Image : Low Voltage Cable Non-Armoured Aluminum Power Cable NA2XY Single Core

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV
Model Number:	NCYY NAYY

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

Low Voltage Cable Non-Armoured Aluminum Power Cable NA2XY Single Core

Description

Voltage:	0.6/1kV	Insulation:	PVC
Sheath:	PVC	Conductor:	Copper

Low Voltage Cable Non-Armoured Aluminum Power Cable NA2XY Single Core

APPLICATION

NA2XY cables are widely used in low voltage power distribution and electrical systems across multiple industries. Key applications include: Building & Construction,Industrial Facilities,Infrastructure & Utilities,Special Environments

CONSTRUCTION

1. Conductor: Compact aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Outer sheath: Polyvinyl chloride PVC

CHARACTERISTIC

Rated voltage:0.6/1kV
Test voltage:3.5kV A.C.
Maximum conductor temperature : 90°C.
Maximum operating temperature:130 °C

Short-circuit max. conductor temperature:250 °C

SPECIFICATION

No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor(20℃)	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
1X10	0.7	1.4	8.0	75	3.08	55	71
1X16	0.7	1.4	9.0	106	1.91	71	91
1X25	0.9	1.4	10.6	150	1.20	94	115
1X35	0.9	1.4	11.6	180	0.868	115	140
1X50	1.0	1.4	13.1	240	0.641	140	165
1X70	1.1	1.4	15.0	320	0.443	180	205
1X95	1.1	1.5	16.8	400	0.320	220	245
1X120	1.2	1.5	18.4	500	0.253	260	280
1X150	1.4	1.6	20.5	600	0.206	300	315
1X185	1.6	1.6	22.6	730	0.164	350	360
1X240	1.7	1.7	25.2	930	0.125	414	420
1x300	1.8	1.8	27.8	1140	0.100	485	475
1x400	2.0	1.9	31.4	1500	0.0778	570	545
1x500	2.2	2.0	34.9	1800	0.0605	670	620
1X630	2.4	2.2	39.1	2285	0.0469	790	705

ABOUT US

Low Voltage Cable Non-Armoured Aluminum Power Cable NA2XY Single Core 1

Low Voltage Cable Non-Armoured Aluminum Power Cable NA2XY Single Core 2

Low Voltage Cable Non-Armoured Aluminum Power Cable NA2XY Single Core 3

APPLICATION

FAQ

1. Are you a manufacturer or trading company?
We are a professional cable manufacturer more than 20 years.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What’s your Minimum Order Quantity?
We adopt flexible MOQ Policy. But the cable is very heavy, a suitable quantity could avoid the high freight.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight.

5. Does your company accept OEM production?
Yes, We support OEM/ODM service
