Product Details:
|
Insulation Material: | XLPE | Conductor Material: | Copper Or Aluminum |
---|---|---|---|
Jacket: | PVC | Working Temperature: | 90°C |
Rated Voltage: | 12/20kV | Color: | Black |

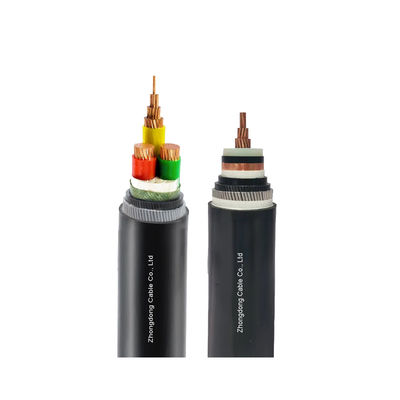

Flame-retardant Medium Voltage Cable 12/20kV N2XSH Single Core Three Core
Suitable for power supply lines with flame retardant requirements, such as urban underground power grids, power station outgoing lines, and internal power lines of industrial and mining enterprises.
Conductor: Tightly press circular conductor
Conductor shield:
Semi conductive shielding material (below 500mm ²)
Semi conductive tape+semi conductive shielding material (500mm ² and above)
Insulation:XLPE
Insulation shielding: Peelable semiconducting shielding material
Metal shielding layer: Copper Tape Copper wire (35kV, 500m ² and above)
Filler:Non hygroscopic filling rope
Binder Tape: Non hygroscopic straps
Armor: 1 core: stainless steel tape 3 core: galvanized steel tape
Inner and outer sheaths: 90 ℃ flame retardant polyvinyl chloride
Voltage Rating Uo/U
12/20(24)kV
Temperature Rating
Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius
Single Core 15D
Three Core 12D
(D is the actual outer diameter of the cable)
GB/T12706.2-2020, GB/T 12706.3-2020
Specs mm² |
Conductor diameter mm |
Nominal thickness of insulation ±1.0mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
|
Specs mm² |
Conductor diameter mm |
Nominal thickness of insulation ±1.0mm |
Approx outer diameter of cable mm |
Approx cable weight kg/km |
1×35 |
6.6±0.2 |
20.0 |
27.2 |
1174 |
|
3×35 |
6.6±0.2 |
20.0 |
54.1 |
4058 |
1×50 |
7.6±0.2 |
21.0 |
28.2 |
1327 |
3×50 |
7.6±0.2 |
21.0 |
56.6 |
4631 |
|
1×70 |
9.2±0.2 |
22.6 |
30.0 |
1597 |
3×70 |
9.2±0.2 |
22.6 |
60.2 |
5482 |
|
1×95 |
10.9±0.2 |
24.3 |
31.7 |
1905 |
3×95 |
10.9±0.2 |
24.3 |
64.2 |
6590 |
|
1×120 |
12.2±0.2 |
25.6 |
33.2 |
2195 |
3×120 |
12.2±0.2 |
25.6 |
67.3 |
7536 |
|
1×150 |
13.6±0.2 |
27.0 |
35.9 |
2833 |
3×150 |
13.6±0.2 |
27.0 |
70.6 |
8572 |
|
1×185 |
15.2±0.2 |
28.6 |
37.6 |
3262 |
3×185 |
15.2±0.2 |
28.6 |
74.5 |
9994 |
|
1×240 |
17.4±0.2 |
30.8 |
40.0 |
3909 |
3×240 |
17.4±0.2 |
30.8 |
81.0 |
12891 |
|
1×300 |
19.5±0.2 |
32.9 |
42.5 |
4606 |
3×300 |
19.5±0.2 |
32.9 |
85.9 |
15246 |
|
1×400 |
22.0±0.2 |
35.4 |
45.1 |
5479 |
3×400 |
22.0±0.2 |
35.4 |
91.9 |
18071 |
|
1×500 |
24.8±0.2 |
39.0 |
49.1 |
6715 |
3×500 |
24.8±0.2 |
39.0 |
100.2 |
21862 |
|
1×630 |
28.2±0.2 |
42.4 |
52.8 |
8230 |
3×630 |
28.2±0.2 |
42.4 |
108.1 |
26592 |
|
1×800 |
33.7±0.2 |
47.9 |
58.5 |
10273 |
|
|
|
|
|
