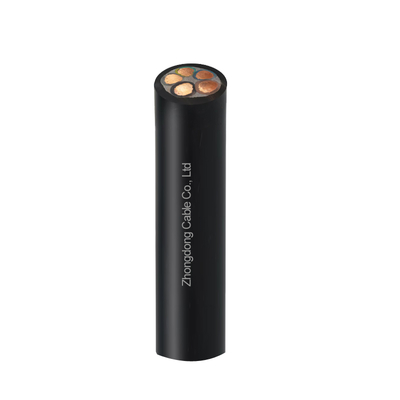

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F
High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F

Large Image :  High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,ISO,CE,TUV,IEC
Model Number: Flexible Cable
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F

Description
Application: Construction Sheath: Rubber
Insulation Options: PVC, Rubber, Or EPR Metric Cross-Sections: 10mm² To 240mm²
Conductor Material: Copper Color: Black, Orange, Red, Etc.

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F


APPLICATION

H07RN-F‌ (450/750V) are heavy-duty, synthetic rubber-sheathed flexible cables designed for ‌extreme durability, flexibility, and safety‌ in harsh conditions


CONSTRUCTION

  • Conductor: Stranded Bare Copper acc. to IEC 60228, EN 60228, VDE 0295, class 5
  • Insulation: Synthetic Rubber, EI4 acc. to DIN VDE 0282 part 1 + HD 22.1
  • Conductor Color Coding: acc. to HD 308 (VDE 0293-308)
  • Conductor Stranding: from 2 conductors stranded in layers
  • Jacket: Synthetic Rubber, EM2 acc. to DIN VDE 0282 part 1 + HD 22.1


High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F 0

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F 1


TECHNICAL DATA

  • Nominal Voltage: Uo/U 450/750 volts
  •  Testing Voltage U: 2500 volts acc. to DIN VDE 0282 part 2 + HD 22.2
  •  Min. Bending Radius: 15 x O.D.

SPECIFICATION

Type
Rated Voltage
Core Number
Nominal Cross-section

H05RN-F
300/500V
2 , 3
0.3-0.5
300/500V
2 , 3 , 4 , 5
0.75-6
H07RN-F
450/750V
1 , 2 , 3 , 4 , 5
1.5-400

 PRODUCTION LINE

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F 2


OUR WAREHOUSE

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F 3

OUR PROJECTS

High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F 4

OUR CLIENTS


High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F 5High Flexibility Rubber Cable Heavy Duty Rubber Cable 2/3/4/5/6/7 Core H07RN-F 6


‌FAQ

Q1. What is H07RN-F cable?‌

A1.A flexible rubber-insulated and rubber-sheathed cable designed for industrial use, compliant with EU standards (EN 50525-3-14). It features stranded copper conductors and robust rubber layers for durability in harsh environments‌.

Q‌2 . What does the model designation mean?‌

A‌2. H‌: Harmonized European standard ‌

07‌: Voltage rating 450/750V ‌

R‌: Rubber insulation ‌

N‌: Rubber sheath ‌

F‌: Flexible (Class 5 stranded conductors per EN 60228)‌

Q3. Where is H07RN-F typically used?‌

A3. Industrial machinery (motors, cranes, wind turbines)‌

Construction sites and agricultural equipment (resistant to UV, oil, and abrasion)‌Temporary power supply in outdoor or corrosive environments‌

Q4. How does it perform in dynamic applications?‌

A4. Suitable for occasional movement (e.g., temporary installations) but not frequent bending due to its weight (e.g., 185mm² version weighs ~3.2kg/m)‌For constant movement, consider lighter alternatives like H05RR-F‌3.

Q5. May I buy samples from you?
A5: Yes! You are welcome to place sample order to test our superior quality and services.
