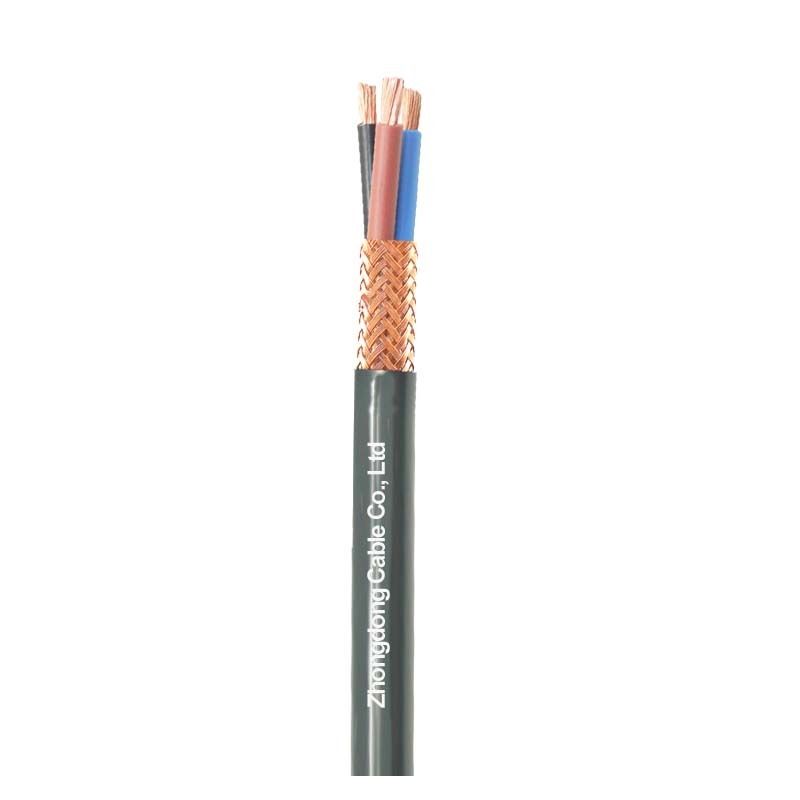

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed
Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed
Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed

Large Image :  Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO,VDE,ISO,TUV
Model Number: KVVP NYCY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Steel Drums
Delivery Time: 10Work days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed

Description
Conductor Material: Copper Insulation Material: PVC
Application: Industrial Jacket: PVC
Color: Optional Cores: 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed


APPLICATION

  • ‌Control circuits in machinery (e.g., PLCs, sensors)
  • Motor control and power distribution systems‌.
  • Fixed installations in ‌ducts, trenches, or indoor environments‌
  • HVAC and lighting control systems‌
  • ‌Audio/video systems‌ (e.g., shielded speaker cables)‌.
  • ‌Medical equipment‌ (requires compliance with IEC/CE standards)‌


CONSTRUCTION

  • ‌Copper conductor‌: Ensures high conductivity and durability‌
  • ‌PVC insulation & sheathing‌: Provides ‌flame retardancy‌ and ‌chemical resistance‌‌
  • ‌Braided copper shield‌: Offers ‌EMI/RFI protection‌ for stable signal transmission in noisy environments‌

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed 0





CHARACTERISTIC

  • Voltage Rating Uo/U: 450/750V
  • Temperature Rating
  • Maximum operating temperature of conductor:+70℃
  • Operating ambient temperature: -15℃~+40℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)



STANDARD

 GB/T9330-2020


SPECIFICATION

Specs
mm²

Conductor diameter
mm

Nominal  thickness of insulation
mm

Nominal  thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

2×0.5

0.85

0.6

1.5

10.6

156.5

2×0.5(B)

0.90

0.6

1.5

10.7

159.2

2×0.75

1.02

0.6

1.5

11.0

168.8

2×0.75(B)

1.10

0.6

1.5

11.1

172.9

2×1

1.16

0.6

1.5

11.2

179.7

2×1(B)

1.29

0.6

1.5

11.5

186.2

2×1.5

1.41

0.7

1.5

12.2

211.5

2×1.5(B)

1.56

0.7

1.5

12.5

219.2

2×2.5

1.76

0.8

1.5

13.4

260.4

2×2.5(B)

2.04

0.8

1.5

13.8

272.6

2×4

2.22

0.8

1.5

14.3

310.7

2×4(B)

2.55

0.8

1.5

14.9

25.1

2×6

2.74

0.8

1.5

15.3

371.7

2×6(B)

3.10

0.8

1.5

16.0

388.9

2×10

4.00

1.0

1.5

18.6

533.9

3×0.5

0.85

0.6

1.5

11.0

171.2

3×0.5(B)

0.90

0.6

1.5

11.1

174.4

3×0.75

1.02

0.6

1.5

11.3

186.5

3×0.75(B)

1.10

0.6

1.5

11.5

191.4

3×1

1.16

0.6

1.5

11.6

200.6

3×1(B)

1.29

0.6

1.5

11.9

208.0

3×1.5

1.41

0.7

1.5

12.6

240.0

3×1.5(B)

1.56

0.7

1.5

12.9

248.8

3×2.5

1.76

0.8

1.5

13.9

02.4

3×2.5(B)

2.04

0.8

1.5

14.4

316.5

3×4

2.22

0.8

1.5

15.0

369.0

3×4(B)

2.55

0.8

1.5

15.5

385.7

3×6

2.74

0.8

1.5

16.0

451.0

3×6(B)

3.10

0.8

1.5

16.7

470.8

3×10

4.00

1.0

1.5

19.6

662.2

4×0.5

0.85

0.6

1.5

11.5

190.5

4×0.5(B)

0.90

0.6

1.5

11.6

194.2

4×0.75

1.02

0.6

1.5

11.9

209.6

4×0.75(B)

1.10

0.6

1.5

12.1

215.0

4×1

1.16

0.6

1.5

12.3

226.9

4×1(B)

1.29

0.6

1.5

12.6

235.4

4×1.5

1.41

0.7

1.5

13.4

275.1

4×1.5(B)

1.56

0.7

1.5

13.7

285.6

4×2.5

1.76

0.8

1.5

14.9

352.8

Contact us for more details


OUR FACTORY

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed 1

PROJECTS

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed 2


APPLICATION

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed 3Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed 4

Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed 5Copper Wire Braiding Screened Control Cable Copper Conductor PVC Insulated and Sheathed 6





FAQ


‌Q: How does the braided copper shield enhance performance?‌
A: Provides ‌EMI/RFI protection‌ for stable signal transmission in noisy environments (e.g., factories, data centers).

Q‌: Is this cable suitable for outdoor installations?‌
A: Yes, with ‌UV-resistant PVC sheathing‌ variant available for renewable energy and marine applications

Q: What standards does this cable comply with?‌
A: Meets ‌IEC 60227‌, ‌CE‌, and ‌RoHS‌ for environmental safety.

Q: Can it be used in medical equipment?‌
A: Yes, with ‌IEC 60601‌ compliance for MRI machines and diagnostic devices.

Q‌: Does it support multi-core configurations?‌
A: Available in ‌2 to 52 cores‌ (0.5–10mm² cross-section) for complex wiring needs.

Q‌: Is it flame-retardant?‌
A: PVC insulation offers ‌self-extinguishing‌ properties, meeting IEC flame tests.

Q: Where can this cable be applied?‌
A: Used in ‌automation, audio systems, railways, and BMS‌ due to its flexibility and shielding.
