EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable

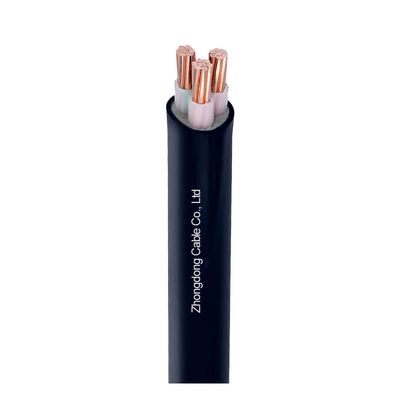

Large Image : EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV
Model Number:	VVng, VVgng

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable

Description

Voltage:	0.6/1kV	Insulation:	PVC
Jacket:	PVC	No Of Core:	1,2,3,4,5
Usage:	Indoor And Outdoor	Characteristic:	Flame Retardant

EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable

APPLICATION

The ‌EAC certified 0.6/1kV low voltage power cable VVG/VVGng flame-retardant cable‌ is designed for fixed electrical installations in industrial and nuclear power plants, ensuring safe energy transmission under AC voltage (0.66/1/3 kV, 50 Hz) or DC voltage (1/1.5/4.5 kV)‌.

CONSTRUCTION

Conductor:Class 1/Class 2 stranded Copper conductor
Insulation:Polyvinyl chloride (PVC)
Filler(options):Polypropylene mesh tearing rope
Outer sheath: Polyvinyl chloride (PVC) or FR-PVC

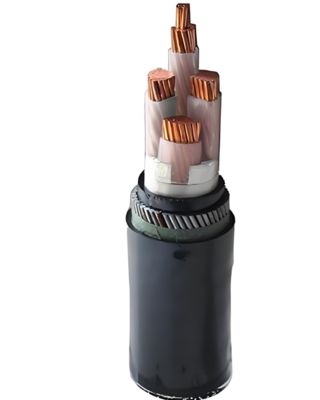

EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable 0

CHARACTERICSTIC

Voltage Rating Uo/U: 0.6/1kV
Maximum system voltage: 1.2kV
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -20℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: Single core: 12D Multicire: 15D (D is the actual outer diameter of the cable)

SPECIFICATION

Specs mm²	Conductor diameter mm	Approximate outer diameter of cable mm				Approximate cable weight kg/km
		Non-flame	ZA	ZB	ZC	Non-flame	ZA	ZB	ZC
3×25	6.1	22.3	22.3	22.3	22.3	997.0	1024.0	1024.0	1000.5
3×35	7.2	24.7	24.7	24.7	24.7	1299.8	1332.1	1332.1	1303.8
3×50	8.4	28.2	28.2	28.2	28.2	1716.5	1847.1	1754.1	1721.1
3×70	10.0	32.0	32.0	32.0	32.0	2380.8	2548.7	2427.9	2386.6
3×95	12.0	37.4	37.4	37.4	37.4	3259.4	3489.9	3322.0	3266.5
3×120	12.2	38.0	38.0	38.0	38.0	3905.5	4142.6	3969.8	3913.1
3×150	13.6	42.1	42.1	42.1	42.1	4796.2	5087.9	4873.9	4805.0
3×185	152	46.8	46.8	46.8	46.8	5978.6	6338.7	6072.9	5989.2
3×240	17.4	52.8	52.8	52.8	52.8	7753.1	8211.9	7871.0	7766.1
3×300	195	58.6	58.6	58.6	58.6	9670.3	10199.8	9813.6	9685.8
3×400	22.0	65.2	65.2	65.2	65.2	12202.9	12861.3	12378.2	12221.3
4×1.5	1.39	10.8	10.7	10.7	10.8	170.6	175.1	175.1	172.2
4×2.5	1.76	11.7	11.6	11.6	11.7	220.7	225.9	225.9	222.5
4×4	2.22	13.8	13.8	13.8	13.8	318.1	325.4	325.4	320.3
4×6	2.74	15.1	15.0	15.0	15.1	412.8	421.4	421.4	415.1
4×10	4.0	18.1	18.4	18.4	18.1	602.9	626.2	626.2	605.7
4×16	5.0	20.8	20.8	20.8	20.8	862.8	885.6	885.6	866.1
4×25	6.1	24.5	24.5	24.5	24.5	1281.8	1311.9	1311.9	1285.7
4×35	7.2	27.2	27.2	27.2	27.2	1679.1	1715.0	1715.0	1683.5
4×50	8.4	31.3	31.3	31.3	31.3	2239.3	2385.8	2281.5	2244.6
4×70	10.0	35.5	35.5	35.5	35.5	3109.9	3297.9	3162.7	3116.7
4×95	12.0	41.5	41.5	41.5	41.5	4262.9	4520.9	4333.0	4271.1
4×120	12.2	42.3	42.3	42.3	42.3	5138.5	5405.6	5211.0	5147.7
4×150	13.6	46.9	46.9	46.9	46.9	6311.1	6639.2	6398.6	6321.8
4×185	152	52.2	52.2	52.2	52.2	7865.5	8270.5	7971.7	7878.3
4×240	17.4	58.8	58.8	58.8	58.8	10201.8	10717.2	10334.5	10217.3
4×300	195	65.3	65.3	65.3	65.3	12725.3	13316.7	12886.3	12743.8
4×400	22.0	72.8	72.8	72.8	72.8	16094.9	16831.0	16292.4	16117.5
5×1.5	1.39	11.7	11.6	11.6	11.7	200.7	205.9	205.9	202.5
5×2.5	1.76	12.7	12.6	12.6	12.7	262.4	268.6	268.6	264.4
5×4	2.22	15.0	15.0	15.0	15.0	381.7	390.3	390.3	384.0
5×6	2.74	16.4	16.4	16.4	16.4	498.6	508.8	508.8	501.2
5×10	4.0	20.1	20.1	20.1	20.1	737.7	759.2	759.2	740.9
5×16	5.0	22.8	22.8	22.8	22.8	1053.8	1080.4	1080.4	1057.5
5×25	6.1	26.9	26.9	26.9	26.9	1573.0	1608.2	1608.2	1577.4
5×35	7.2	30.1	30.1	30.1	30.1	2080.1	2122.7	2122.7	2085.2
5×50	8.4	34.8	34.8	34.8	34.8	2791.3	2970.7	2841.9	2797.9
5×70	10.0	39.3	39.3	39.3	39.3	3856.5	4085.4	3919.5	3864.3
5×95	12.0	46.2	46.2	46.2	46.2	5310.0	5625.8	5394.5	5320.1
5×120	12.2	46.9	46.9	46.9	46.9	6377.7	6702.5	6464.4	6388.3
5×150	13.6	52.1	52.1	52.1	52.1	7859.3	8260.9	7964.8	7872.1
5×185	152	57.9	57.9	57.9	57.9	9792.2	10287.6	9920.3	9807.5
5×240	17.4	65.3	65.3	65.3	65.3	12699.8	13330.1	12859.9	12718.2
5×300	195	72.5	72.5	72.5	72.5	15840.3	16565.8	16034.9	15862.1

For more specification, please contact us.

APPLICATION

EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable 2

ABOUT US

EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable 3

PROJRCTS

EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable 4

PARTNER

EAC Certificated 0.6/1kV Low voltage Power Cable VVg VVgng Flame-retardant Cable 5

FAQ

Q1: Are you trading company or manufacturer ?
A1: We are manufacturer with more than 20 year in cable manufacture.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5. What is your MOQ

A5: We have flexible MOQ requirement, contact us for details
