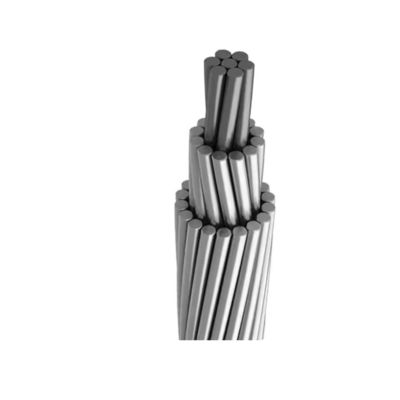

High Strength ACSR Aluminum Bare Conductor Steel Wire Core For Overhead Line

High Strength ACSR Aluminum Bare Conductor Steel Wire Core For Overhead Line
High Strength ACSR Aluminum Bare Conductor Steel Wire Core For Overhead Line

Large Image :  High Strength ACSR Aluminum Bare Conductor Steel Wire Core For Overhead Line

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: ISO,CCC,CE
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum/ Steel Drum
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/WEEK
Contact Now

High Strength ACSR Aluminum Bare Conductor Steel Wire Core For Overhead Line

Description
Standard: IEC61089 Application: Overhead
Insulation Material: Bare Conductor Material: Aluminum Wire And Steel Wire
Highlight:

ACSR Aluminum Bare Conductor

,

High Strength Aluminum Bare Conductor

ACSR Aluminum Bare Conductor Steel Wire Core For Overhead Line



Product Description



ACSR (Aluminum Conductor Steel Reinforced) is a type of overhead power transmission conductor widely used in electrical grids. It combines the advantages of aluminum and steel, offering high strength, excellent conductivity, and corrosion resistance.



Structural



Outer Aluminum Layers: Multiple aluminum strands are twisted around the exterior, responsible for conducting electricity. Aluminum provides excellent conductivity and is lightweight.

Central Steel Core: One or more high-strength steel strands form the core, providing mechanical strength to support the conductor and withstand tension.



Advantages



High Strength: The steel core enhances the tensile strength, making it suitable for long spans and heavy-load applications.

Good Conductivity: The outer aluminum strands ensure high electrical conductivity.

Corrosion Resistance: Both aluminum and steel offer corrosion resistance, extending the conductor's lifespan.

Cost-Effectiveness: Compared to pure copper conductors, ACSR is more economical while maintaining performance.

ACSR Conductors according to GOST 839-80



# Section Aluminum part Steel part Min. Breaking Strength
Number of wires Nom. wire diameter Number of wires Nom. wire diameter
1 16/2.7 6 1.85 mm. 1 1.85 mm. 6,220 N.
2 25/4.2 6 2.30 mm. 1 2.30 mm. 9,296 N.
3 35/6.2 6 2.80 mm. 1 2.80 mm. 13,524 N.
4 50/8.0 6 3.20 mm. 1 3.20 mm. 17,112 N.
5 70/11 6 3.80 mm. 1 3.80 mm. 24,130 N.
6 70/72 18 2,20 mm. 19 2.20 mm. 96,862 N.
7 95/16 6 4.50 mm. 1 4.50 mm. 33,369 N.
8 120/19 26 2.40 mm. 7 1.85 mm. 41,521 N.
9 120/27 30 2.20 mm. 7 2.20 mm. 49,465 N.
10 150/19 24 2.80 mm. 7 1.85 mm. 46,307 N.
11 150/24 26 2.70 mm. 7 2.10 mm. 52,279 N.
12 150/34 30 2.50 mm. 7 2.50 mm. 62,643 N.
13 185/24 24 3.15 mm. 7 2.10 mm. 58,075 N.
14 185/29 26 2.98 mm. 7 2.30 mm. 62,055 N.
15 185/43 30 2.80 mm. 7 2.80 mm. 77,767 N.
16 205/27.0 24 3.30 mm. 7 2.20 mm. 63,740 N.
17 240/32 24 3.60 mm. 7 2.40 mm. 75,050 N.
18 240/39 26 3.40 mm. 7 2.65 mm. 80,895 N.
19 240/56 30 3.20 mm. 7 3.20 mm. 98,253 N.
20 300/39 24 4.00 mm. 7 2.65 mm. 90,574 N.
21 300/48 26 3.80 mm. 7 2.95 mm. 100,623 N.
22 300/204 54 2.65 mm. 37 2.65 mm. 284,579 N.
23 330/43.0 54 2.80 mm. 7 2.80 mm. 103,784 N.
24 400/18 42 3.40 mm. 7 1.85 mm. 85,600 N.
25 400/51 54 3.05 mm. 7 3.05 mm. 120,481 N.
26 400/64 26 4.34 mm. 7 3.40 mm. 129,183 N.
27 400/93 30 4.15 mm. 19 2.50 mm. 173,715 N.
28 500/27 76 2.84 mm. 7 2.20 mm. 112,188 N.
29 500/64 54 3.40 mm. 7 3.40 mm. 148,257 N.
30 600/72 54 3.70 mm. 19 2.20 mm. 183,835 N.
