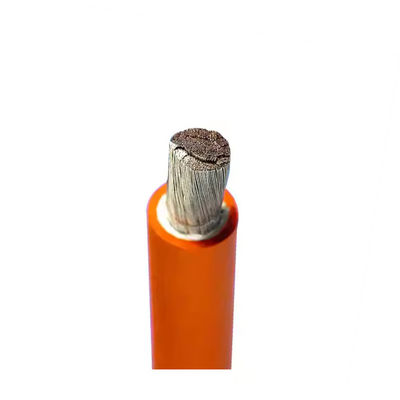

Copper Conductor Rubber Insulation Cable 16mm 25mm 35mm IEC 60332.1 Flame Retardant

Copper Conductor Rubber Insulation Cable 16mm 25mm 35mm IEC 60332.1 Flame Retardant
Copper Conductor Rubber Insulation Cable 16mm 25mm 35mm IEC 60332.1 Flame Retardant

Large Image :  Copper Conductor Rubber Insulation Cable 16mm 25mm 35mm IEC 60332.1 Flame Retardant

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,ISO,CE,TUV,IEC
Model Number: Flexible Cable
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 100M/Roll
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Copper Conductor Rubber Insulation Cable 16mm 25mm 35mm IEC 60332.1 Flame Retardant

Description
Application: Industrial Insulation Material: Rubber
Jacket: Rubber Size: 16mm 25mm2 35mm 35mm 50mm 70mm
Conductor Material: Copper Working Temperature: 90°C
Highlight:

Copper Conductor Rubber Insulation Cable

,

IEC 60332.1 Rubber Insulation Cable

Copper Conductor Rubber Insulation Cable 16mm 25mm 35mm

Description

Rubber flexible cable designed for use in demanding environments where frequent movement, bending, and exposure to harsh conditions are required. It is widely used in industrial, construction, and transportation applications, particularly in diesel locomotives, heavy machinery, and mining equipment.

Technical Characteristics

Working voltage: 100/100 volts,Test voltage: 1000 volts,Flexing bending radius: 12.0 x Ø
Fixed bending radius: 7.5 x Ø
Flexing Temperature: -25º C to +80º C
Fixed Temperature: -40º C to +80º C
Flame retardant: IEC 60332.1

Specification

Conductor Size
Strand Count
Diameter Over Conductor
Insulation Thickness
Jacket Thickness
Approx OD
Copper Weight
Approx. Weight
AWG/Kcmil
No.of Strands
inch
mil
mil
inch
lb/1000ft
lb/1000ft
12
19
0.091
45
15
0.21
20
36
10
19
0.125
55
25
0.265
32
58
8
37
0.145
55
30
0.33
52
92
6
65
0.186
50
30
0.37
81
127
4
105
0.235
60
35
0.44
133
196
2
161
0.29
60
35
0.5
210
282
1
210
0.33
85
60
0.635
267
400
1/0
266
0.379
75
55
0.645
327
450
2/0
342
0.4
80
50
0.69
423
566
3/0
418
0.48
80
55
0.76
518
676
4/0
532
0.53
80
60
0.815
638
815
262.2
646
0.565
80
60
0.845
740
974
313.3
779
0.65
90
70
0.98
896
1139
373.7
931
0.701
95
70
1.04
1076
1343
444.4
1121
0.782
90
65
1.105
1378
1654
535.3
1330
0.843
105
75
1.212
1549
1889
646.4
1628
0.89
115
80
1.29
1898
2292
777.7
1924
0.966
120
90
1.405
2246
2727
1111
2745
1.168
115
95
1.64
3560
