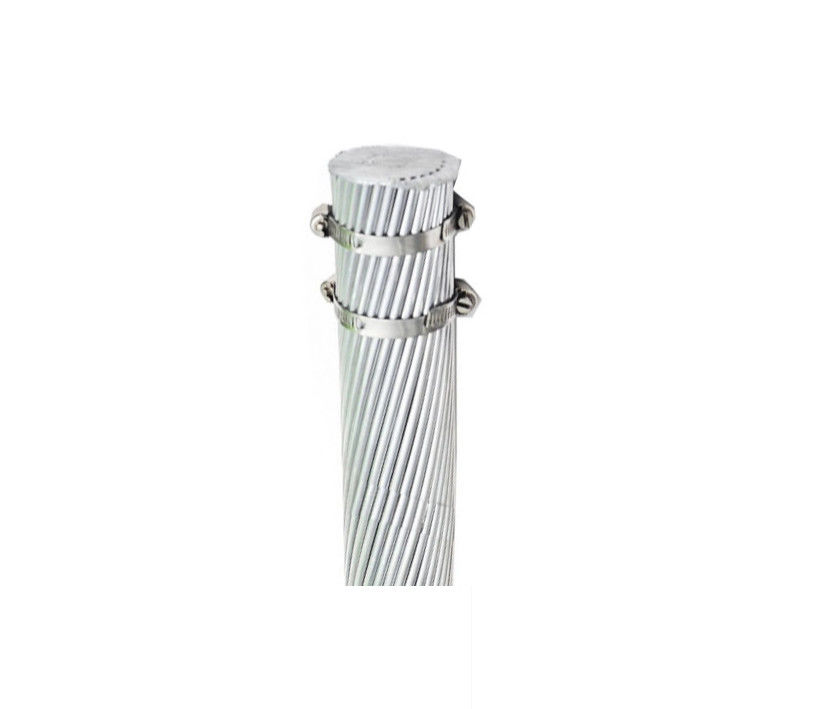

Custom AAC Aluminum Bare Conductor 16mm2-800mm2 For Overhead Electric Cables

Custom AAC Aluminum Bare Conductor 16mm2-800mm2 For Overhead Electric Cables
Custom AAC Aluminum Bare Conductor 16mm2-800mm2 For Overhead Electric Cables

Large Image :  Custom AAC Aluminum Bare Conductor 16mm2-800mm2 For Overhead Electric Cables

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: VDE,CCC,ISO,TUV
Model Number: AAC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden-Steel Drum
Delivery Time: 10work days
Payment Terms: L/C,T/T
Supply Ability: 200KM/Week
Contact Now

Custom AAC Aluminum Bare Conductor 16mm2-800mm2 For Overhead Electric Cables

Description
Insulation Material: None Application: Overhead
Conductor Material: All Aluminum Jacket: None
Type: Bare Conductor Size: 4-1000mm2
Highlight:

Custom AAC Aluminum Bare Conductor

,

Overhead Electric Cable Bare Conductor

AAC Aluminum Bare conductor Overhead Electric Cables



Applications


Stranded 1350 aluminum conductors:
Class AA: for bare conductors usually used in overhead lines.
Class A: for conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.



Construction



Aluminum alloy 1350-H19 wires, concentrically stranded



Type



1. AAC : All Aluminum Conductor

2.ACSR :Aluminum Conductor Steel Reinforced

3. AAAC :All Alloy Aluminum Conductor

4. AACSR : Aluminum Alloy Conductor Steel Reinforced

5.ACAR :Aluminum Conductor Alloy Reinforced

6.ACSR/AW :Aluminum Conductor Aluminum Clad Steel Reinforced



Specifications



Technical characteristics of Al conductors/China standard-GB1179:

Nominal		 Stranding
Calculate
Overall		   D,C Calculate
Calculate		 Continuous Carrying
Area Number  d Area Diameter Resistan d d Weight   Capacity(A)
Diameter   ce Breaking
mm² No.mm  mm² mm   Q/km Load N kg/km 70℃ 80℃ 90℃
  16  7/1.70  15.89   5.10  1.80200  2840  43.5  84  100  112
  25  7/2.15  25.41   6.45  1.12700  4355  69.6  112  133  151
  35  7/2.50  34.36   7.50  0.83320  5760  94.1  135  161  183
  50  7/3.00  49.48   9.00  0.57860  7930  135.5  168  202  230
  70  7/3.60  71.25   10.80  0.40180  10950  195.1  210  253  289
  95  7/4.16  95.14   12.48  0.30090  14450  260.5  250  304  347
120  19/2.85  121.21   14.25  0.23730  19420  333.5  289  353  405
150  19/3.15  148.07   15.75  0.19430  23310  407.4  327  400  460
185  19/3.50  182.80   17.50  0.15740  28440  503.0  371  456  526
210  19/3.75  209.85   18.75  0.13710  32260  577.4  403  497  574
240  19/4.00  238.76   20.00  0.12050  36260  656.9  435  538  522
300  37/3.20  297.57   22.40  0.09689  46850  820.4  496  617  715
400  37/3.70  397.83   25.90  0.07247  61150  1097.0  588  738  859
500  37/4.16  502.90   29.12  0.05733  76370  1387.0  674  852  995
630  61/3.63  631.30   32.67  0.04577  91940  1744.0  768  977  1145
800  61/4.10  805.36   36.90  0.03588  115900  2225.0  880  1129  1328



Tag:

Bare Copper Conductor,

Aluminium Bare Conductor,

Overhead Line Conductor
