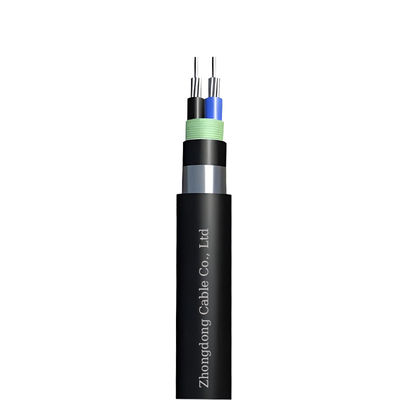

0.6/1kV PVC Insulated Power Cable Two Core Steel Tape Armoured NYBY NAYBY

0.6/1kV PVC Insulated Power Cable two core Steel Tape Armoured NYBY NAYBY

Application

1. Low voltage power transmission: widely used in low-voltage transmission lines, internal distribution systems of buildings, and motor windings to meet conventional power transmission needs.
2. Installation in complex environments: Suitable for corrosive environments such as chemical enterprises and humid places, due to its chemical corrosion resistance, it can ensure long-term stable operation.
3. Daily infrastructure: used for manufacturing daily and industrial infrastructure such as wires and cables, pipes, packaging films, etc., covering household, commercial, and industrial electricity scenarios.

Construction

1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
2. Insulation:PVC
3. Filler: Non-hygroscopic material
4. Inner sheath:PVC
5. Armouring: Steel Tape Armoured
6. Outer sheath:PVC

Advantage

1. Excellent electrical insulation: It can maintain stable insulation effect in humid environments, effectively prevent current leakage, and ensure transmission safety.
2. Strong corrosion resistance: It has high resistance to chemical substances such as acid and alkali, oil stains, etc., and is suitable for corrosive environments such as chemical and marine industries.
3. Reliable mechanical performance: It has high tensile and bending strength, adapts to complex installation conditions, and is not easily broken by external forces.
4. Outstanding flame retardant performance: When exposed to fire, a carbonized layer is formed to block the spread of flames and reduce the risk of fire.

Characteristic

1. Test Voltage: 3.5kV 5min No Breakdown
2. The ambient temperature for installation: ≥0℃.
3. Maximum conductor temperature in normal operation:≤90℃.
4. Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
5. Permissible minimum bending radius:
6. Multi-core armoured cable: 12 x OD

Spesification
