600v Heat Resistant Rubber Cable Ultra Soft 22 24 26 28 30 AWG Industrial

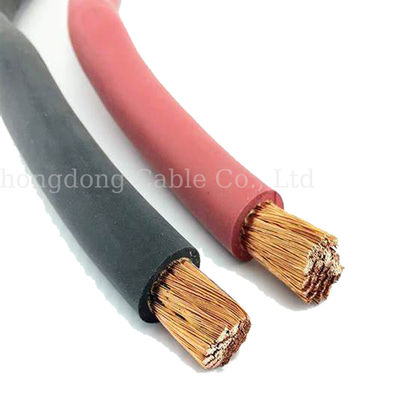

Large Image : 600v Heat Resistant Rubber Cable Ultra Soft 22 24 26 28 30 AWG Industrial

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	VDE,CCC,ISO,TUV
Model Number:	H07RN-F

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	10work days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

600v Heat Resistant Rubber Cable Ultra Soft 22 24 26 28 30 AWG Industrial

Description

Application:	Industrial	Conductor Material:	Copper
Jacket:	PCP	Voltage:	600v
Color:	Bleck, Red, Yellow, Green
Highlight:	30 AWG Heat Resistant Rubber Cable , 600v Heat Resistant Rubber Cable

Heat Resistant Rubber Cable Ultra Soft 22 24 26 28 30 AWG

Application

suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.

Construction

Conductor: Tinned Copper
Insulator: Silicone Rubber
Sheath: Fiberglass
Colours: White-Blue-Red-Black-Brown-Yellow-Transparent

Characteristics

Nominal voltage: 600V
Temperature Range: -60° C~+200 ° C
Testing Voltage: 2000V

Specification

Conductor			Insulation
spec AWG	Conductor construction No./mm	Diameter mm	Nominal thickness(mm)	Fiberglass thickness(mm)	Nominal diameter(mm)	Max diameter(mm)
26	7/0.16	0.48	0.78	0.15	2.4	2.6
24	7/0.20	0.60	0.78	0.15	2.5	27
22	7/0.25	0.75	0.78	0.15	28	3.1
20	7/0.31	093	0.78	0.15	3	3.3
18	7/0.395	1.19	0.78	0.15	3.2	3.5
16	7/0.495	1.49	0.78	02	3.6	39
14	41/0.25	1.82	0.78	02	4	4.5
12	45/0.32	25	0.78	025	52	57
10	35/0.45	308	1.18	025	6	65
8	44/0.50	3.9	1.53	0.4	78	8.5
6	70/0.50	55	1.53	0.4	9.4	10.3
4	110/0.50	6.9	1.53	0.4	10.8	11.8
2	175/0.50	8.7	1.53	0.4	12.6	13.8
1	217/0.50	10	203	0.5	15.1	16.6
1/00	276/0.50	11.2	2.03	0.5	16.3	17.9
2/00	342/0.50	12.2	2.03	0.5	17.3	18.9
3/00	437/0.50	13.8	2.03	0.5	18.9	20.7
4/00	551/0.50	15.5	2.03	0.5	20.6	22.6
250Kcmi	1009/0.40	16.8	2.45	0.5	229	252
300Kcmi	1216/0.40	18.5	2.45	0.5	24.6	27.1
350Kcmi	1406/0.40	20	2.45	0.5	26.1	28.7
400Kcmi	1615/0.40	21.5	2.45	0.5	27.6	30.3
450Kcmi	1813/0.40	226	245	0.7	28.9	31.8
500Kcmil	2010/0.40	23.9	245	0.7	30.2	33.2
550Kcmi	2220/0.40	25	28	0.7	32	352
600Kcmi	2420/0.40	26.2	28	0.7	33.2	36.5
650Kcmi	1675/0.50	27.3	2.8	0.7	34.3	37.7
700Kcmi	1808/0.50	28.2	28	0.7	35.2	38.7
750Kcmi	1935/0.50	29.3	28	0.7	36.3	39.9
