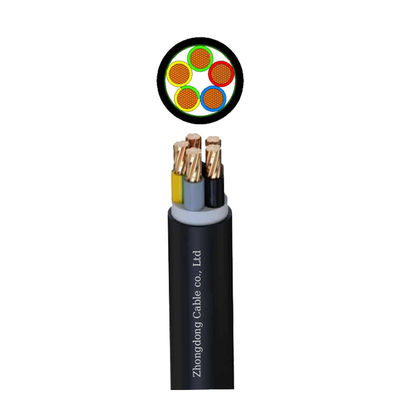

Fire Resistant PVC Insulation Cable , FR PVC Cable NYY NYYHY NAYY 4 Core

Fire Resistant PVC Insulation Cable , FR PVC Cable NYY NYYHY NAYY 4 Core
Fire Resistant PVC Insulation Cable , FR PVC Cable NYY NYYHY NAYY 4 Core

Large Image :  Fire Resistant PVC Insulation Cable , FR PVC Cable NYY NYYHY NAYY 4 Core

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: NYBY NAYBY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Fire Resistant PVC Insulation Cable , FR PVC Cable NYY NYYHY NAYY 4 Core

Description
Model No: NYY NYYHY NAYY Feature: Fire Resistant
Insulation: PVC Application: Solar Cable
Core No: 4 Armour: Steel Tape
Highlight:

Fire Resistant FR PVC Cable

,

Fire Resistant 4 core pvc cable

Fire Resistant PVC Insulation Cable , FR PVC Cable NYY NYYHY NAYY



Application



Fire Resistant PVC insulation cables are for fixed installation.Can be used indoors, outdoors, underground, in concrete and in water.



Construction

  1. Conductor:Circular, solid, compacted or sector shaped stranded Copper or aluminum
  2. Insulation:PVC
  3. Filler: Non-hygroscopic material
  4. Inner sheath:PVC
  5. Armouring: Steel Tape Armoured
  6. Outer sheath:PVC



Advantage



  1. Excellent electrical insulation: It can maintain stable insulation effect in humid environments, effectively prevent current leakage, and ensure transmission safety.
  2. Strong corrosion resistance: It has high resistance to chemical substances such as acid and alkali, oil stains, etc., and is suitable for corrosive environments such as chemical and marine industries.
  3. Reliable mechanical performance: It has high tensile and bending strength, adapts to complex installation conditions, and is not easily broken by external forces.
  4. Outstanding flame retardant performance: When exposed to fire, a carbonized layer is formed to block the spread of flames and reduce the risk of fire.





Spesification





Number of Core

Nominal Sectional Area

Conductor Diameter  (Approx)

Nominal  Insulation Thickness

Nominal Outer Sheath Thickness

Overall   Diameter (Approx)

Cable Copper  Weight  (Approx)

Max.Conductor Resistance. DC at 20°C

Current Carrying Capacity In Air at 30°C

Current Carrying Capacity In Air at 20°C

Voltage Drop

Short   Circuit  Current for 1 sec

Nos

mm²

mm

mm

mm

mm

kg/km

Ω/km

A

A

mV/A/m

kA

4

1.5

1.59

0.7

1.8

12.8

209

12.1

29

25

31

0.21

2.5

2.01

14

270

7.41

39

33

19

0.36

4

2.55

15.4

364

4.61

52

43

12

0.57

6

3.12

17

481

3.08

66

53

7.9

0.86

10

3.8

18.8

702

1.83

90

71

4.7

1.43

16

4.74

21.3

1020

1.15

115

91

2.9

2.29

25

5.97

0.9

26.2

1556

0.727

152

116

1.9

3.58

35

7.1

29.5

2091

0.524

188

139

1.35

5.01

50

8.1

1

1.87

33

2768

0.387

228

164

1

7.15

70

9.74

1.1

2.07

38.4

3916

0.268

291

203

0.69

10.02

95

11.46

2.26

43.4

5305

0.193

354

239

0.52

13.59

120

12.93

1.2

2.44

48.3

6655

0.153

410

271

0.42

17.17

150

14.33

1.4

2.63

53.5

6900

0.124

472

306

0.35

21.46

185

16.05

1.6

2.86

59.7

10218

0.0991

539

343

0.29

26.47

240

18.43

1.7

3.14

67.2

13146

0.0754

636

395

0.24

34.34

300

20.64

1.8

3.4

74.3

16552

0.0601

732

446

0.21

42.93

400

23.34

2

3.73

83.3

21075

0.047

847

-

0.19

57.23
