0.6KV 1kV PVC Insulated PVC Sheathed Electrical Cable Three Core Custom Length

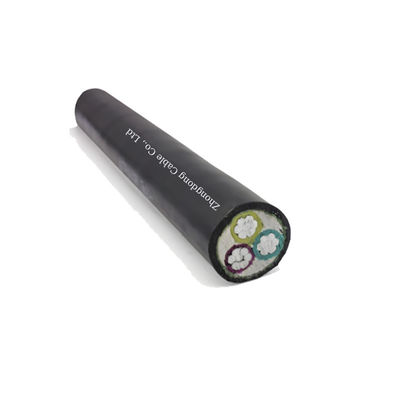

Large Image : 0.6KV 1kV PVC Insulated PVC Sheathed Electrical Cable Three Core Custom Length

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO,TUV
Model Number:	NYBY NAYBY

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time:	7-30 days based on different qty
Payment Terms:	,L/C,T/T
Supply Ability:	100KM/Week

Contact Now

0.6KV 1kV PVC Insulated PVC Sheathed Electrical Cable Three Core Custom Length

Description

Armored:	SWA , STA	Sheath Material:	PVC
Conductor Size:	Varies	Insulation:	Insulated
Rated Voltage:	0.6/1kV	Length:	Varies
Highlight:	Custom Length PVC Insulated Electrical Cable , 1kV PVC Insulated PVC Sheathed Cable

0.6/1kV Three Core PVC Insulated Power Cable PVC Sheathed Electrical Cable

Application

Internal wring or external interconnection of electronic equipment.

Construction

Conductor:Circular, solid, compacted or sector shaped stranded copper or aluminum
Insulation:PVC
Filler: Non-hygroscopic material
Inner sheath:PVC
Outer sheath:PVC

Characteristics

Test Voltage: 3.5kV 5min No Breakdown
The ambient temperature for installation: ≥0℃.
Maximum conductor temperature in normal operation:≤90℃
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable

Specification

Nominal section area	Approx. overall diameter	Approx. weight of cable		Maximum DC resistance of the conductor
mm2	mm	kg/km		Ω/km
		Cu	Al	20℃ Cu	20℃ Al
3×1.5	10.6	147	–	12.1	–
3×2.5	11.5	185.6	138.9	7.41	12.1
3×4	13.4	258.1	183.5	4.61	7.41
3×6	14.5	338.2	226.3	3.08	4.61
3×10	16.7	489	302.4	1.83	3.08
3×16	18.9	703.1	404.6	1.15	1.91
3×25	22.3	1012.9	546.5	0.727	1.2
3×35	24.5	1315.8	663	0.524	0.868
3×50	23.9	1734.6	801.9	0.387	0.641
3×70	27.1	2337.7	1031.9	0.268	0.443
3×95	31	3130.7	1358.6	0.193	0.32
3×120	34.3	3878.7	1640.3	0.153	0.253
3×150	38.6	4827.9	2029.9	0.124	0.206
3×185	42.7	5929.1	2478.1	0.0991	0.164
3×240	48	7621.4	3144.5	0.0754	0.125
3×300	53.2	9463.7	3867.6	0.0601	0.1
