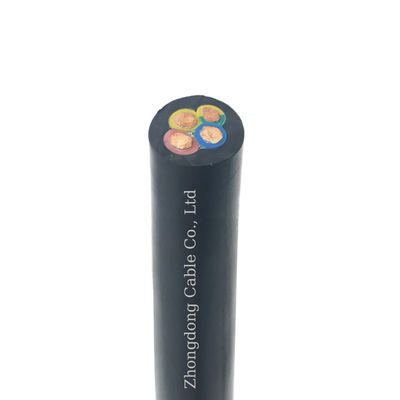

450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2

450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2
450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2

Large Image :  450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: VDE,CCC,ISO,TUV
Model Number: H07RN-F
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 10work days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2

Description
Application: Industrial Conductor Material: Copper
Jacket: PCP Voltage: 600v
Color: Bleck, Red, Yellow, Green
Highlight:

95mm2 Flexible Rubber Cable

,

750V Flexible Rubber Cable

450/750V Flexible  Rubber Cable 3 or 4 Cores 2.5mm2 50mm2 95mm2



Application



450/750V Flexible  Rubber Cables are suitable for applications such as handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. The tough rubber sheath also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments, and severe industrial environments.



Construction



450V 750V Flexible Rubber Cable 3 Or 4 Cores 2.5mm2 50mm2 95mm2 0



Characteristics

The H07RN-F cable has a voltage rating of 450/750V. As a low voltage cable, sizing can be determined with help from our Cable Calculator when system design and installation parameters are considered.

Specification



Size(mm2)

Conductor structure
(MM)

Outer diameter of conductor
(MM)

Insulation thickness
(MM)

Sheath thickness
(MM)

Reference outside diameter
(MM)

Reference weight
(KG)

3 x 1.5

30/0.25

1.56

0.8

1.6

11.0

139.8

3 x 50

19 x 20/0.40

10.00

1.6

4.5

39.4

2603.7

3 x 120+1 x 35

19 x 30/0.50
7 x 37/0.40

15.6
8.4

1.8
1.4

5.6

54.9

5650.4

4 x 10

77/0.40

4.56

1.2

3.4

25.7

951.9

4 x 150

19 x 38/0.50

17.3

2.0

6.5

66.6

8527.6
