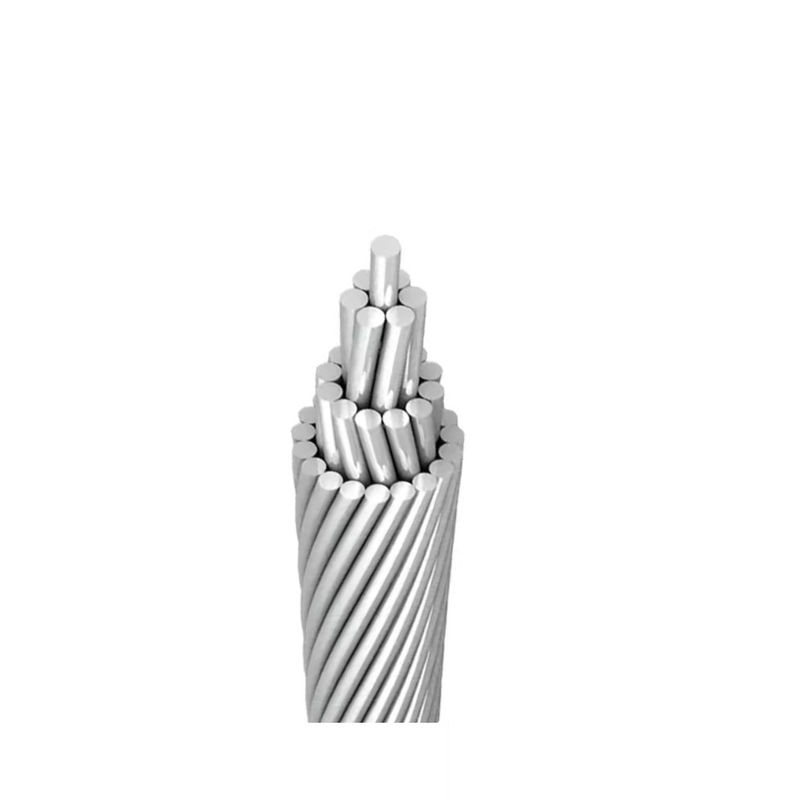

1350 AAC All Aluminum Conductor 95mm 120mm 150mm 185mm 240mm 300mm

1350 AAC All Aluminum Conductor 95mm 120mm 150mm 185mm 240mm 300mm
1350 AAC All Aluminum Conductor 95mm 120mm 150mm 185mm 240mm 300mm

Large Image :  1350 AAC All Aluminum Conductor 95mm 120mm 150mm 185mm 240mm 300mm

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,IEC,VDE,TUV,ISO
Model Number: AAC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: ,L/C,T/T
Supply Ability: 500KM/Week
Contact Now

1350 AAC All Aluminum Conductor 95mm 120mm 150mm 185mm 240mm 300mm

Description
Application: Overhead Conductor Model Name: AAC Conductor
Nominal Section: 16-800mm2 Insulation Material: NO Insulation
Jacket: No Sheath Conductor Material: All Aluminum Conductor
Highlight:

AAC All Aluminum Conductor 95mm

,

150mm All Aluminum Conductor

,

1350 All Aluminum Conductor

AAC Bare Conductor All Aluminum Conductor 95mm 120mm 150mm 185mm 240mm 300mm





Application



AAC (All Aluminum Conductor) is a bare overhead cable made of pure aluminum (1350 alloy) without insulation.

Overhead Power Transmission & Distribution

Utility Lines: Used in low-to-medium voltage overhead distribution (up to 33kV).

Rural Electrification: Cost-effective for long-span installations (e.g., poles in remote areas).

Service Drops: Connects utility poles to buildings (limited to dry environments).







Advantage



Lightweight: ~50% lighter than copper, reducing tower load.
Corrosion-Resistant: Natural oxide layer protects against weathering.
Low Cost: Cheaper than ACSR or copper conductors.





Standards



ASTM B231 (US), IEC 61089 (International)



parameter



Technical characteristics of Al conductors/International standard-IEC1089:

Code
Number		   Area
  mm²
Number
of wires		 Diameter
LinearMass
kg/km		 Rated Strength
kN
D.C Resistance
Q/km
Wire mm Conductor
mm
10  10  7  1.35  4.05  27.4  1.95  2.8633
16  16  7  1.71  5.12  43.8  3.04  1.7896
25  25  7  2.13  6.40  68.4  4.50  1.1453
40  40  7  2.70  8.09  109.4  6.80  0.7158
63  63  7  3.39  10.20  172.3  10.39  0.4545
100    100  19  2.59  12.90  274.8  17.00  0.2877
125    125  19  2.89  14.50  343.6  21.25  0.2302
160    160  19  3.27  16.40  439.8  26.40  0.1798
200    200  19  3.66  18.30  549.7  32.00  0.1439
250    250  19  4.09  20.50  687.1  40.00  0.1151
315    315  37  3.29  23.00  867.9  51.97  0.0916
400    400  37  3.71  26.00  1102.0  64.00  0.0721
450    450  37  3.94  27.50  1239.8  72.00  0.0641
500    500  37  4.15  29.00  1377.6  80.00  0.0577
560    560  37  4.39  30.70  1542.9  89.60  0.0515
630    630  61  3.63  32.60  1738.3  100.80  0.0458
710    710  61  3.85  34.60  1959.1  113.60  0.0407
800    800  61  4.09  36.80  2207.4  128.00  0.0361
900    900  61  4.33  39.00  2483.3  144.00  0.0321
1000    1000  61  4.57  41.10  2759.2  160.00  0.0289
1120    1120  91  3.96  43.50  3093.5  179.20  0.0258
1250    1250  91  4.18  46.00  3452.6  200.00  0.0231
1400    1400  91  4.43  48.70  3866.9  224.00  0.0207
1500    1500  91  4.58  50.40  4143.1  240.00  0.0193
