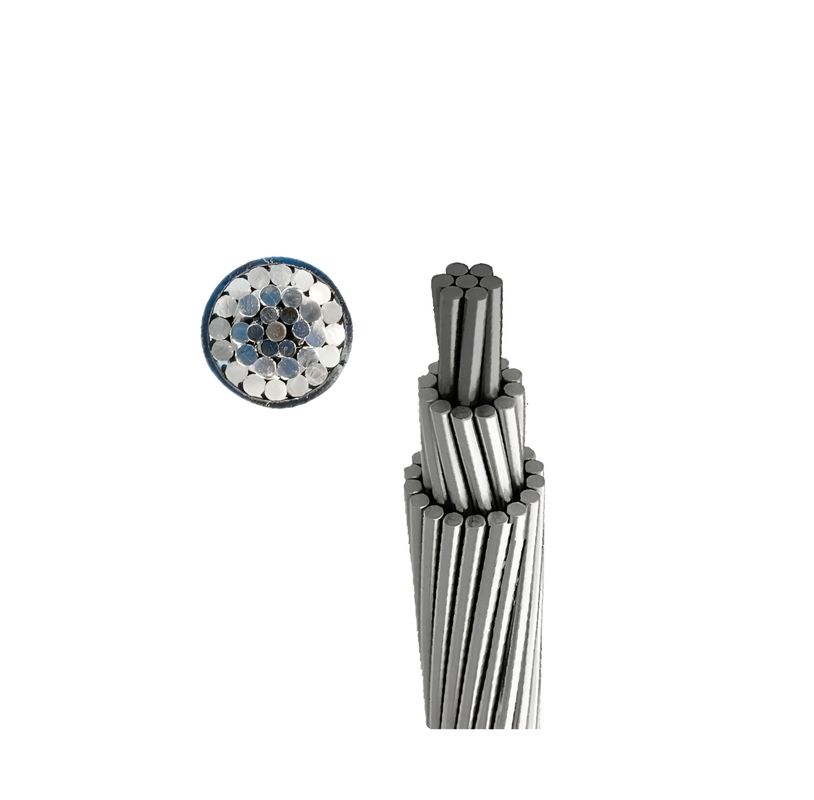

ACSR Bare Aluminum Conductor Steel Reinforced 150mm Overhead BS215 Standard

ACSR Bare Aluminum Conductor Steel Reinforced 150mm Overhead BS215 Standard
ACSR Bare Aluminum Conductor Steel Reinforced 150mm Overhead BS215 Standard

Large Image :  ACSR Bare Aluminum Conductor Steel Reinforced 150mm Overhead BS215 Standard

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,IEC,VDE,TUV,ISO
Model Number: ACSR
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: L/C,T/T
Supply Ability: 500KM/Week
Contact Now

ACSR Bare Aluminum Conductor Steel Reinforced 150mm Overhead BS215 Standard

Description
Application: Overhead Conductor Model Name: ACSR Conductor
Nominal Section: 16-1000mm2 Insulation Material: NO Insulation
Jacket: No Sheath Conductor Material: Aluminum Conductor Steel Reinforced
Highlight:

150mm Aluminum Conductor Steel Reinforced

,

BS215 Standard Bare Aluminum Conductor

ACSR Bare Conductor Steel Reinforced 150mm Overhead BS215 Standard





Application



ACSR (Aluminum Conductor Steel Reinforced) is a composite overhead cable combining aluminum strands for conductivity and a steel core for strength. Its key applications include:

Overhead Power Transmission & Distribution

  • High-Voltage Lines: Ideal for transmission towers (33kV to 500kV) due to high tensile strength.
  • Long Spans: Used in river crossings, mountainous areas, and windy regions (resists sagging).
  • Rural Grids: Cost-effective for medium-voltage distribution (11kV-33kV).



Advantage



High Strength-to-Weight Ratio: Steel core supports heavy loads without excessive sag.

Cost-Efficient: Aluminum provides conductivity at lower cost vs. pure copper.
Durable: Resists corrosion (galvanized steel core) and extreme weather.



Standards



ASTM B231 (US), IEC 61089 (International)



Core Types



Single Steel Core: For standard spans.

Multi-Strand Steel Core: Extra strength (e.g., ACSR "Drake" for heavy loads).



parameter



BS215 ACSR Bare Conductor Parameter
Code name
Nominal aluminum area mm2
Sectional area of aluminum
Total sectional area
Overall diameter
Total Weight
mm2
mm2
mm
kg/km
Mole
10
10.62
12.39
4.50
43
Squirrel
20
20.94
24.43
6.33
85
Gopher
25
26.24
30.62
7.08
106
Weasel
30
31.61
36.88
7.77
128
Fox
35
36.66
42.77
8.37
149
Ferret
40
42.41
49.48
9.00
172
Rabbit
50
52.88
61.70
10.05
214
Mink
60
63.18
73.71
10.98
255
Skunk
60
63.27
100.30
12.95
465
Beaver
70
74.82
87.29
11.97
302
Horse
70
73.37
116.20
13.95
538
Racoon
75
79.20
92.40
12.30
320
Otter
80
83.88
97.86
13.98
339
Cat
90
95.40
111.30
15.90
386
Hare
100
105.00
122.50
17.50
425
Dog
100
105.00
118.50
14.15
394
Hyena
100
105.80
126.20
14.57
450
Leopard
125
131.30
148.10
15.81
492
Coyote
125
132.10
152.20
15.89
522
Congar
125
130.30
137.50
15.25
419
Tiger
125
131.10
161.70
16.52
602
Dingo
150
158.70
167.50
16.75
506
Wolf
150
158.10
194.90
18.13
726
Caracal
175
184.30
194.50
18.05
587
Lynx
175
183.40
326.20
19.53
842
Jaguar
200
210.60
222.30
19.30
671
Panther
200
212.10
261.50
21.00
974
Lion
225
238.50
294.20
22.26
1095
Bear
250
264.00
325.60
23.45
1213
Goat
300
324.30
400.00
25.97
1489
Sheep
350
374.10
461.40
27.93
1718
Antilope
350
373.10
421.50
26.73
1411
Bizon
350
381.80
431.30
27.00
1444
Deer
400
429.30
529.50
28.89
1971
Zebra
400
428.90
484.50
28.62
1621
ELK
450
477.00
588.30
31.50
2190
Camel
450
475.20
536.80
30.15
1777
Moose
500
528.70
597.20
31.77
1999
Finch
500
564.70
642.90
33.35
2243
