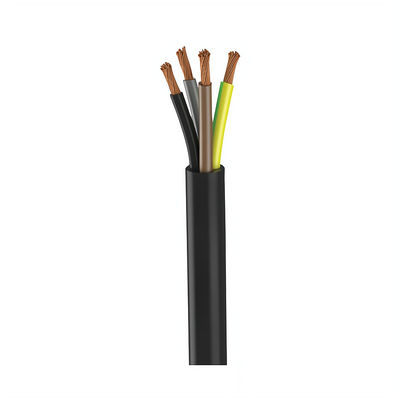

300/500V Multi-core Rubber Cable H05RR-F Copper Conductor

Application

H05RR-F is a flexible, rubber-insulated, multi-core cable designed for temporary power supply and medium-duty industrial applications. Its key uses include:

1. Industrial & Construction Sites

Temporary electrical distribution – Powers tools, lighting, and equipment in harsh environments.

Mobile machinery – Suitable for welding machines, pumps, and portable generators.

Resistant to oils, abrasion, and mechanical stress – Ideal for workshops and construction zones.

2. Agricultural & Outdoor Use

Farm equipment – Powers tractors, irrigation systems, and feeding machinery.

Not for permanent outdoor exposure (UV degrades rubber; use conduits if needed).

3. Stage & Event Equipment

Flexible power for lighting, audio systems, and temporary setups – Handles frequent movement.

Features

Voltage Rating: 300/500V (phase/line).

Conductor: Fine-stranded copper (Class 5) for high flexibility.

Temperature Range: -25°C to +60°C (short-term +70°C).

Standards: Complies with HD 22.4 / EN 50525-2-21 (EU harmonized).

parameter

Electrical Characteristics (4mm2 and above) Current Carrying Capacity
