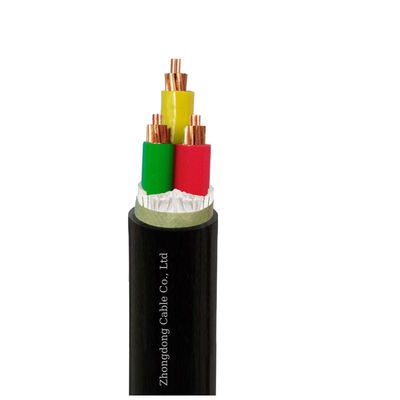

IEC 60502-1 PVC Insulated Power Cable 3 Core Copper Conductor PVC Sheathed

IEC 60502-1 PVC Insulated Power Cable 3 Core Copper Conductor PVC Sheathed
IEC 60502-1 PVC Insulated Power Cable 3 Core Copper Conductor PVC Sheathed

Large Image :  IEC 60502-1 PVC Insulated Power Cable 3 Core Copper Conductor PVC Sheathed

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: NYY-J
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

IEC 60502-1 PVC Insulated Power Cable 3 Core Copper Conductor PVC Sheathed

Description
Voltage: 0.6/ 1kV Item No: NYY-J
Insulation: PVC Core: Multi Cores
Temperature Range: - 30℃ To + 70℃ Sheathed: PVC
Highlight:

IEC 60502-1 PVC Insulated Power Cable

,

Copper Conductor PVC Sheathed Cable

IEC 60502-1 PVC Insulated Power Cable  3 Core Copper Conductor PVC Sheathed





Application



  1. Power distribution: Suitable for indoor/outdoor wiring, ducts, or buried (with protection).
  2. Industrial plants: Powers machinery, control systems, and lighting networks.



Construction



  1. Conductor: Copper
  2. Insulation:PVC
  3. sheath:PVC



Feature



  1. Rated Voltage Uo/U: 0.6/1 kV
  2. Maximum operating voltage: 1.2 kV
  3. Frequence: 50 Hz
  4. Test voltage :3500 V
  5. Permissible operating temperature at conductor:+70°C
  6. short circuit temperature ( duration max. 5 s):160 °C
  7. Minimum installation temperature: should not be lower than 0°C
  8. Max. conductor permissible tensile stress: 50 N/mm²
  9. Minimum bending radius: 15 x cable Ø



Specification



No.cores x
cross-sec.

Insulation
thickness

Nominal

Sheath
thickness

Outer Ø
approx.

weight
approx.

Current ratings in air 30℃

Current ratings buried 20℃

maximum DC resistance at 20℃

mm²

mm

mm

mm

kg / km

A

A

Ω/km

3×1.5

0.8

1.8

11

154

17

22

12.1

3×2.5

0.8

1.8

11.9

194

22

29

7.41

3×4.0

1.0

1.8

13.8

274

29

38

4.61

3×6.0

1.0

1.8

14.9

348

37

47

3.08

3×10

1.0

1.8

17.6

529

52

65

1.83

3×16

1.0

1.8

19.9

740

68

85

1.15

3×25

1.2

1.8

23.7

1058

91

110

0.73

3×35

1.2

1.8

26.1

1382

112

134

0.52

3×50

1.4

1.8

26.4

1760

133

159

0.39

3×70

1.4

2.0

29.8

2364

171

199

0.27

3×95

1.6

2.1

33.8

3158

209

237

0.19

3×120

1.6

2.2

36.7

3921

242

271

0.15

3×150

1.8

2.3

40.2

4868

282

305

0.12

3×185

2.0

2.5

45.6

5952

329

346

0.10

3×240

2.2

2.7

51.7

7713

392

400

0.08

3×300

2.4

2.9

56.1

10004

450

462

0.06
