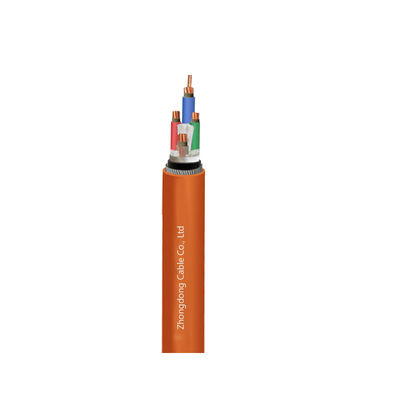

Flame Retardant PVC Insulated Power Cable Steel Tape Armored CU/PVC/PVC/STA/PVC

Application

 PVC insulated power cable is suitable for electricity transmission and distribution line whose rated voltage is 0.6/1kV. The fire resistant type is used in place where high density and good fire-proof property are required, such as subway, power station, high-rise building, entertainment place, large industriall and mining enterprises etc

Construction

Conductor:Copper Conductor

Mica tape

Insulation: PVC(polyvinyl chloride)

Metallic Screen: optional Copper tape or copper wires braiding optional

Armored optional:Aluminum wire or stainless steel tape for single core cable, Steel wire or steel tape for multi core cable

Sheath: PVC or FR-PVC

Feature

1. Rated Voltage Uo/U: 0.6/1 kV
2. Maximum operating voltage: 1.2 kV
3. Frequence: 50 Hz
4. Test voltage :3500 V
5. Permissible operating temperature at conductor:+70°C
6. short circuit temperature ( duration max. 5 s):160 °C
7. Minimum installation temperature: should not be lower than 0°C
8. Max. conductor permissible tensile stress: 50 N/mm²
9. Minimum bending radius: 15 x cable Ø

Specification
