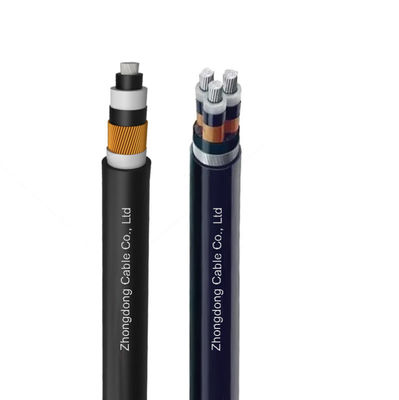

Medium Voltage Steel Tape Armored Cable AA-8000 Series Copper Wire Shield

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

25.6

33.8

1370

3×50

7.6±0.2

256

68.1

4915

1×70

9.2±0.2

27.2

36.8

1855

3×70

9.2±0.2

27.2

71.7

5417

1×95

10.9±0.2

28.9

38.5

2019

3×95

10.9±0.2

28.9

75.8

6002

1×120

12.2±0.2

30.2

40.0

2188

3×120

12.2±0.2

302

80.3

7343

1×150

13.6±0.2

31.6

41.6

2373

3×150

13.6±0.2

31.6

83.5

7932

1×185

15.2±0.2

33.2

43.4

2598

3×185

15.2±0.2

33.2

87.3

8705

1×240

17.4±0.2

35.4

45.7

2907

3×240

17.4±0.2

35.4

92.5

9801

1×300

19.5±0.2

37.5

48.0

3224

3×300

19.5±0.2

37.5

97.4

10875

1×400

22.0±0.2

40.0

50.7

3689

3×400

22.0±0.2

40.0

103.5

12531

1×500

24.8±0.2

43.6

54.6

4252

3×500

24.8±0.2

43.6

111.8

14423

1×630

28.2±0.2

47.0

58.5

4917

3×630

28.2±0.2

47.0

119.8

16614

1×800

340±0.2

52.8

64.5

5795
