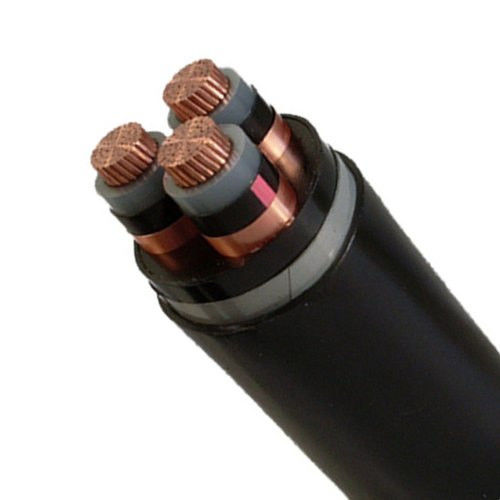

300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM

300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM
300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM

Large Image :  300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: YJ(S)V62 YJ(S)V22
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM

Description
Armored: Steel Tape Sheath Material: PVC
Insulation: XLPE Rated Voltage: 26/35kV
Conductor: Copper No Of Core: 1
Highlight:

300sq mm Armoured Electrical Cable

,

Steel Tape Armoured Electrical Cable

,

OEM Armoured Electrical Cable 35kV

300sq mm Armoured Electrical Cable Steel Tape Armoured STA 35kV Cu/XLPE/PVC/STA







Construction



300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM 0







  1. Conductor: Circular compacted stranded Copper or aluminium
  2. Conductor screen: Extruded semi-conductive compound
  3. Insulation: XLPE
  4. Insulation screen: Extruded semi-conductive compound
  5. Metallic screen: Copper Wire
  6. Binder tape: non-hygroscopic material
  7. Inner covering(bedding):  PVC
  8. Metallic armor: Galvanized steel tape



Application



Featuring XLPE insulation, steel tape armor, and an outer sheath (PVC/PE), these cables (6–35kV) meet standards like IEC 60502-2 and GB/T 12706. Ideal for installations demanding mechanical resilience, long-term reliability, and protection against external damage.






300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM 1300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM 2300sq mm Steel Tape Armoured Electrical Cable 35kV Cu XLPE PVC STA OEM 3

Specification



YJV62   YJV22-26/35kV  Cable Structure Parameters



Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

3×50

7.6±0.2

31.2

81.8

8065

3×70

9.2±0.2

32.8

85.6

9116

3×95

10.9±0.2

34.5

89.5

10298

3×120

12.2±0.2

35.8

92.8

11418

3×150

13.6±0.2

37.2

96.2

12614

3×185

15.2±0.2

38.8

99.8

14066

3×240

17.4±0.2

41.0

105.1

16311

3×300

19.5±0.2

43.1

109.9

18616

3×400

22.0±0.2

45.6

116.0

21704

3×500/35

24.8±0.2

49.2

129.4

27029

3×630/35

28.2±0.2

52.6

137.5

32059













Tag:

Armoured Power Cable,

Armored Electrical Wire,

Underground Armored Cable
