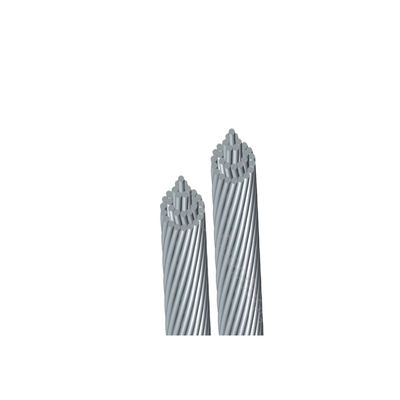

Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission

Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission
Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission

Large Image :  Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,IEC,VDE,TUV,ISO
Model Number: AAAC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden Drum
Delivery Time: 7-30 days based on different Qty
Payment Terms: ,L/C,T/T
Supply Ability: 500KM/Week
Contact Now

Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission

Description
Range Of Application: Overhead Transmission, Overhead Ground Material: Aluminum
Drum Packing: Steel Wooden Drum Product Name: AAC/AAAC/ACSR/ACSS/ACCC
Per Drum Weight: As Per Request Voltage: Up To 110KV
Highlight:

Overhead Transmission Aluminium Bare Conductor

,

Stranded AAC ACSR AAAC Conductor

Stranded Bare Conductor Cable AAC ACSR AAAC Aluminum Cable


Application

These conductors are mainly used in urban areas for electricity transfer. Apart from that, these conductors are also extensively used in coastal area because of their corrosion resistance properties.


Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission 0Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission 1Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission 2

Construction



Code name Item Application
AAC All-aluminium Conductor Mainly for overhead power transmission and primary and secondary distribution
AAAC All Aluminimum Alloy Conductor
ACSR Aluminium Conductor Steel Reinforced Used us bare overhead transmission cable and as primary and secondary distribution cable. ACSR/AACSR/TACSR offers optimal

Stranded Aluminium Bare Conductor AAC ACSR AAAC Conductor For Overhead Transmission 3


Discription



Nominal Area
Stranding&Wire
Dia.
Overall Dia.
Weight
Breaking Load
DC Resistance at 20ºC
Current Rating
Aluminum
Steel
MM2
NO./MM
NO./MM
MM
KG/KM
kN
Ω/km
A
25
6/2.36
1/2.36
7.08
72.1
9.61
1.093
126
50
6/3.35
1/3.35
10.05
214.1
18.35
0.5426
185
100
6/4.72
1/4.72
14.15
394.7
32.70
0.2733
278
150
30/2.59
7/2.59
18.13
725.9
69.20
0.1828
355
150
18/3.35
1/3.35
16.75
507.4
35.70
0.1815
349
175
30/2.79
7/2.79
19.53
842.4
79.80
0.1576
386


FAQ



Q1: Are you trading company or manufacturer ?
A1: We are manufacturer and trading company.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
 Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
 Q4: Can we be your distributor?
 A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
 A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
