Solid Stranded 70Sq.Mm Bare Copper Conductor For Overhead Power Line

Large Image : Solid Stranded 70Sq.Mm Bare Copper Conductor For Overhead Power Line

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	7-30 days based on different Qty
Payment Terms:	,L/C,T/T
Supply Ability:	500KM/Week

Contact Now

Solid Stranded 70Sq.Mm Bare Copper Conductor For Overhead Power Line

Description

Range Of Application:	Overhead Transmission	Material:	Copper
Drum Packing:	Steel Wooden Drum	Per Drum Weight:	As Per Request
Voltage:	Up To 110KV	Product:	Bare Conductor
Highlight:	70Sq.Mm Bare Copper Conductor , Solid Stranded Bare Copper Conductor

70Sq.mm Cu. Bare Copper Conductor for Overhead Power Line

Application

Solid and stranded bare copper conductors are suitable for overhead transmission and distribution applications. Stranded conductors of greater flexibility are suitable for uninsulated hook up, jumpers and grounds in electrical construction.

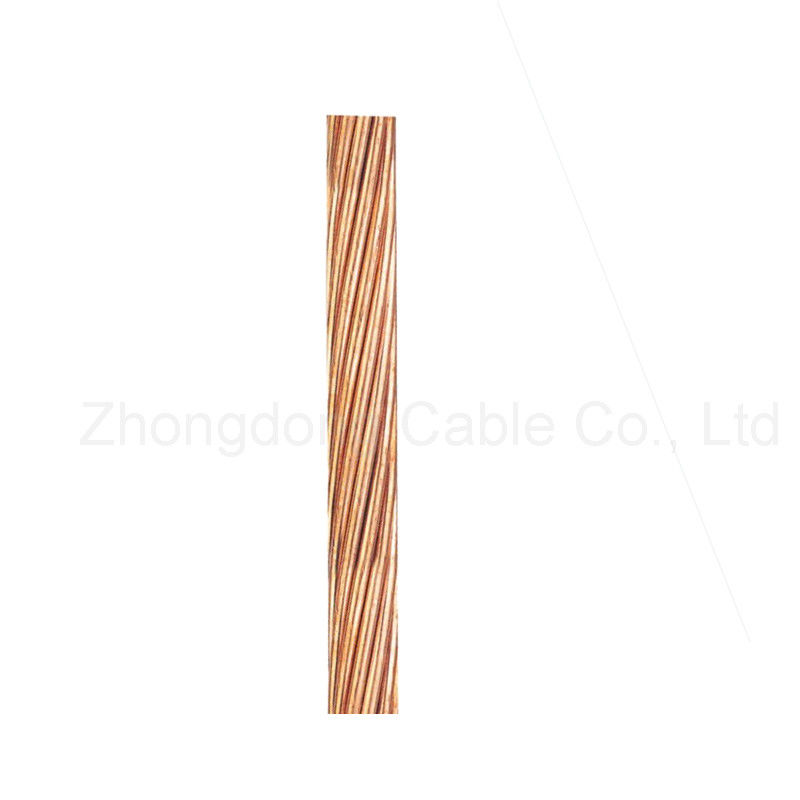

Solid Stranded 70Sq.Mm Bare Copper Conductor For Overhead Power Line 0

Construction

Bare stranded soft-drawn copper conductor is a concentric-lay-stranded conductor consisting of hard-drawn copper wires available in both single layer and multi-layer constructions

Descripction

Conductor: stranded hard drawn copper
No. of strands: 3, 7, 19, 37
Conductor shape: round
Lay direction of outer layer: right
Conductor specification

Specification

Nominal Area (mm2)	Construction (No./mm)	Overall Dia. (mm)	Approx. weight (kg/km)	Max. DC Resist. @ 20ºC (Ω/km)	Min. Breaking Load (N)
10	7/1.35	4.05	89.82	1.829	3752
14	7/1.60	4.80	126.2	1.303	5267
16	3/2.65	5.70	148.3	1.106	6194
16	7/1.70	5.10	142.4	1.154	5946
25	7/2.10	6.30	217.3	0.7563	9073
32	3/3.75	8.06	296.9	0.5520	12400
32	7/2.46	7.38	298.2	0.5497	12442
35	7/2.50	7.50	308.0	0.5337	12860
50	7/3.00	9.00	443.5	0.3706	18520
50	19/1.80	9.00	435.8	0.3819	17700
70	7/3.55	10.65	621.1	0.2646	25930
70	19/2.10	10.50	593.2	0.2806	24090
95	19/2.50	12.50	840.7	0.1980	34140
100	7/4.30	12.90	911.2	0.1810	36540
120	19/2.80	14.00	1055	0.1578	42830
125	19/2.90	14.50	1131	0.1471	45940
150	19/3.20	16.00	1377	0.1208	55940
150	37/2.25	15.75	1334	0.1264	53880
185	19/3.55	17.75	1695	0.09815	68860
185	37/2.50	17.50	1647	0.1024	66490
