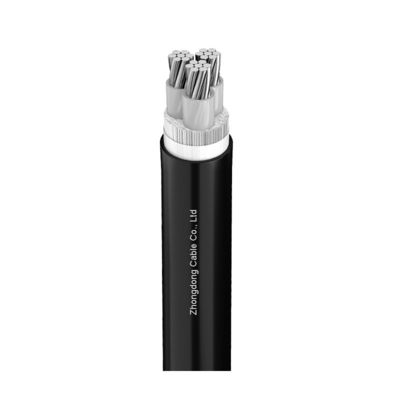

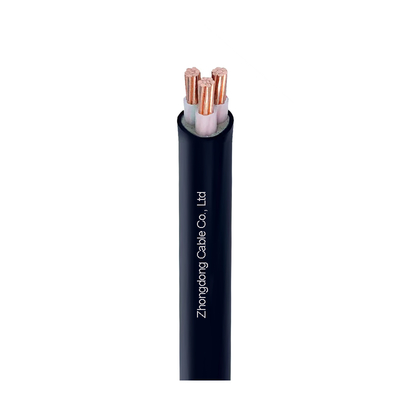

1.5-400mm Low Voltage Cable Three Core Power Cable Copper Conductor PVC Insulated Unarmored Power Cable
CONSTRUCTION
- Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum
- Insulation: PVC
- Filler: non-hygroscopic material
- Binder tape: non-hygroscopic material
- Sheath: PVC
CHARACTERICSTIC
- Test Voltage: 3.5kV 5min No Breakdown
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
- Single unarmoured cable: 20 x OD
- Multi-core unarmoured cable: 15 x OD
- Single armoured cable: 5 x OD
- Multi-core armoured cable: 12 x OD
- Note : OD=Overall Diameter of Cable
SPECIFICATION
|
Specs
mm²
|
Conductor diameter
mm
|
Nominal thickness of insulation
mm
|
Nominal thickness of sheath
mm
|
Approximate outer diameter of cable
mm
|
Approximate cable weight
kg/km
|
|
3×1.5
|
1.38
|
0.7
|
1.8
|
10.4
|
142
|
|
3×2.5
|
1.78
|
0.7
|
1.8
|
11.3
|
183
|
|
3×4
|
2.25
|
0.7
|
1.8
|
12.3
|
240
|
|
3×6
|
2.76
|
0.7
|
1.8
|
13.4
|
311
|
|
3×10
|
4.0
|
0.7
|
1.8
|
16.0
|
446
|
|
3×16
|
5.0
|
0.7
|
1.8
|
18.2
|
641
|
|
3×25
|
6.1
|
0.9
|
1.8
|
21.5
|
955
|
|
3×35
|
7.2
|
0.9
|
1.8
|
23.9
|
1259
|
|
3×50
|
8.4
|
1.0
|
1.8
|
27.1
|
1674
|
|
3×70
|
10.0
|
1.1
|
1.9
|
31.2
|
2347
|
|
3×95
|
12.0
|
1.1
|
2.0
|
35.7
|
3176
|
|
3×120
|
13.0
|
1.2
|
2.1
|
38.5
|
3931
|
|
3×150
|
14.9
|
1.4
|
2.3
|
43.9
|
4893
|
|
3×185
|
16.5
|
1.6
|
2.4
|
48.5
|
6050
|
|
3×240
|
18.4
|
1.7
|
2.6
|
53.5
|
7828
|
|
3×300
|
21.0
|
1.8
|
2.8
|
59.9
|
9763
|
|
3×400
|
23.4
|
2.0
|
3.1
|
66.6
|
12470
|
APPLICATION
Low-voltage PVC (polyvinyl chloride) insulated cables are widely used in electrical systems operating at voltages below 1 kV (typically up to 1 kV AC or 1.5 kV DC).
Their versatility, cost-effectiveness, and durable properties make them suitable for a broad range of applications.
