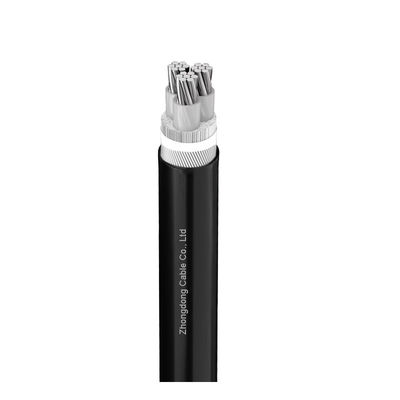

Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color

Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color
Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color

Large Image :  Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO,TUV
Model Number: NYBY NAYBY
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rolls, Wooden Drums, Steel Drums, Reels or customized
Delivery Time: 7-30 days based on different qty
Payment Terms: ,L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color

Description
Armored: SWA , STA Sheath Material: PVC
Conductor Size: Varies Insulation: Insulated
Rated Voltage: 0.6/1kV Length: Varies
Highlight:

Steel Wire Armoured PVC Cable

,

Custom Color PVC Insulated Power Cable

Steel Wire Armoured PVC Insulated Power Cable STW Cu/AL/PVC/PVC/SWA





‌Application‌

  1. ‌Industrial Plants‌: Widely used in power distribution systems for heavy machinery and equipment in manufacturing facilitie
  2. ‌Urban Underground Networks‌: Deployed in buried installations for commercial complexes, hospitals, and public utilities due to its mechanical durability
  3. ‌Renewable Energy Projects‌: Integrates into solar farms and wind parks for grid connections requiring resistance to environmental stress.
  4. ‌Oil & Gas Facilities‌: Ideal for petrochemical plants and offshore platforms where corrosion resistance and mechanical protection are critical
  5. ‌Mining and Tunneling‌: Withstands harsh conditions such as rock abrasion and high-pressure environments

Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color 0Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color 1Steel Wire Armoured PVC Insulated Power Cable STW Cu AL PVC PVC SWA Custom Color 2



Construction

  1. Conductor:Circular, solid, compacted or sector shaped stranded copper or aluminum
  2. Insulation:PVC
  3. Filler: Non-hygroscopic material
  4. Armouring: Steel Wire
  5. Inner sheath:PVC
  6. Outer sheath:PVC



Specification





Nominal section area

Approx. overall diameter

Approx. weight of cable

Maximum DC resistance of the conductor

mm2

mm

kg/km

Ω/km





Cu

Al

20℃ Cu

20℃ Al

3×1.5

10.6

147

–

12.1

–

3×2.5

11.5

185.6

138.9

7.41

12.1

3×4

13.4

258.1

183.5

4.61

7.41

3×6

14.5

338.2

226.3

3.08

4.61

3×10

16.7

489

302.4

1.83

3.08

3×16

18.9

703.1

404.6

1.15

1.91

3×25

22.3

1012.9

546.5

0.727

1.2

3×35

24.5

1315.8

663

0.524

0.868

3×50

23.9

1734.6

801.9

0.387

0.641

3×70

27.1

2337.7

1031.9

0.268

0.443

3×95

31

3130.7

1358.6

0.193

0.32

3×120

34.3

3878.7

1640.3

0.153

0.253

3×150

38.6

4827.9

2029.9

0.124

0.206

3×185

42.7

5929.1

2478.1

0.0991

0.164

3×240

48

7621.4

3144.5

0.0754

0.125

3×300

53.2

9463.7

3867.6

0.0601

0.1
