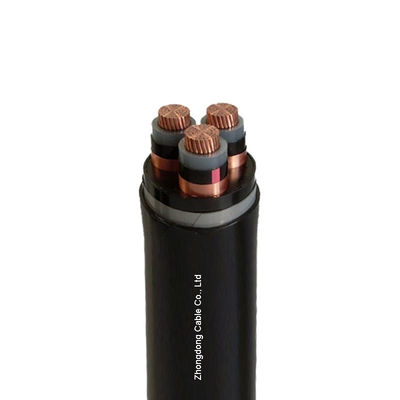

N2XBY N2XSBY PVC Power Cable PVC Sheath Metal Tape Armouring 20kV PVC Insulated Wire

N2XBY N2XSBY PVC Insulated Power Cable  PVC Sheath Metal Tape Armouring Power Cable 20kV

‌Application

1. ‌Underground Power Distribution‌:Widely used in urban underground networks, industrial parks, and utility grids for efficient energy transmission (rated for ‌12/20 kV‌ systems)
2. ‌Renewable Energy Integration‌:Connects solar farms, wind turbines, and energy storage systems to substations or grids, offering resistance to environmental stress
3. ‌Industrial Facilities:Supplies power to heavy machinery, transformers, and switchgear in factories, mining sites, and petrochemical plante
4. ‌Tunnels and Subways‌:Deployed in confined or humid spaces due to its moisture-resistant sheath and mechanical durability
5. Fire-Sensitive Areas‌:Suitable for installations requiring low-smoke, flame-retardant properties (e.g., commercial buildings, hospitals

Construction

1.  Conductor: Round compacted conductors
2. Conductor Shield: Semi conductive shielding material (below 500mm) Semi conductive tape+semi conductive shielding material (500mmand above)
3. Insulation:Polyvinyl chloride (PVC)
4. Insulation Shield: Peelable semiconducting shielding material
5. Metal Shield Layer: Copper Tape Copper Wire(35kV 500mm above)
6. Filler: Polypropylene(PP) mesh filling rope
7. Binder Tape: Non hygroscopic straps
8. Armouring: Steel Tape(Single core) Galvanized steel tape(3 core)
9.  Outer sheath: 90℃ Polyvinyl chloride (PVC)

Specification
