AWG Flexible Rubber Low Voltage Cable 300V 600V Rubber Power Cable for Construction

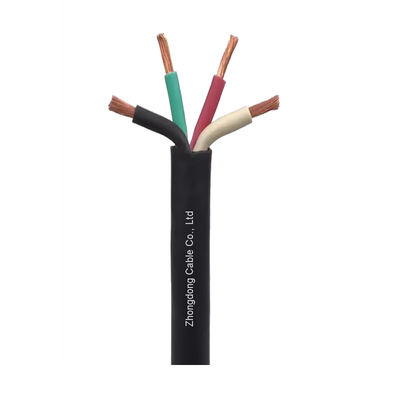

Large Image : AWG Flexible Rubber Low Voltage Cable 300V 600V Rubber Power Cable for Construction

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,ISO,CE,TUV,IEC
Model Number:	Flexible Cable

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

AWG Flexible Rubber Low Voltage Cable 300V 600V Rubber Power Cable for Construction

Description

Application:	Construction	Sheath:	Rubber
Insulation Options:	PVC, Rubber, Or EPR	Metric Cross-Sections:	10mm² To 240mm²
Conductor Material:	Copper	Color:	Black, Orange, Red, Etc.
Highlight:	600V Construction Rubber Power Cable , Flexible Rubber Low Voltage Cable

AWG Flexible Rubber Cable Low Voltage Cable 300V/600V

Application

Portable tools, equipment, small motors and associated machinery, appliances, equipment exposed to oils, solvents, flame, moisture and other electrical equipment where flexibility and durability are required

AWG Flexible Rubber Low Voltage Cable 300V 600V Rubber Power Cable for Construction 0

Construction

Conductor: Highly flexible bare annealed copper or tinned copper wire
Insulation Options: PVC, Rubber, or EPR (Ethylene Propylene Rubber)
Sheath Variants:Natural rubber (YH type);Chloroprene/synthetic rubber (YHF type)
Alternative options: PVC or CSP (Chlorosulfonated Polyethylene)

Specification

AWG Size	No. of Cond.	Conductor Stranding	Nom. O.D. of Cable (in)	Amps
18	2	16/30	0.345	10
18	3	16/30	0.365	10
18	4	16/30	0.39	7
18	5	16/30	0.47	5.6
18	6	16/30	0.49	5.6
18	7	16/30	0.52	4.9
18	8	16/30	0.53	4.9
18	9	16/30	0.555	4.9
18	10	16/30	0.575	3.5
18	12	16/30	0.6	3.5
18	14	16/30	0.64	3.5
18	16	16/30	0.7	3.5
18	20	16/30	0.75	3.5
18	22	16/30	0.805	3.1
18	24	16/30	0.805	3.1
18	30	16/30	0.88	3.1
18	50	16/30	1.1	2.5
16	2	26/30	0.37	13
16	3	26/30	0.39	13
16	4	26/30	0.42	10
16	5	26/30	0.5	8
16	6	26/30	0.53	8
16	7	26/30	0.53	7
16	8	26/30	0.565	7
16	9	26/30	0.6	7
16	10	26/30	0.615	5
16	12	26/30	0.7	5
16	14	26/30	0.725	5
16	16	26/30	0.76	5
16	18	26/30	0.795	5
16	20	26/30	0.825	5
16	24	26/30	0.875	4.5
16	37	26/30	1.065	4
16	39	26/30	1.08	4
16	40	26/30	1.1	4
16	44	26/30	1.18	4
16	60	26/30	1.335	3.5
