Product Details:
|
Type: | Bare Conductor | Insulation Material: | None, Bare |
---|---|---|---|
Temperature Rating: | 90°C | Structure: | Aluminium Alloy Conductor & Steel Core |
Number Of Wire: | 7,19,37,61,91 | Application: | Overhead Power Lines |
Highlight: | 120mm2 stranded bare copper conductor,120mm2 bbc bare copper conductor |

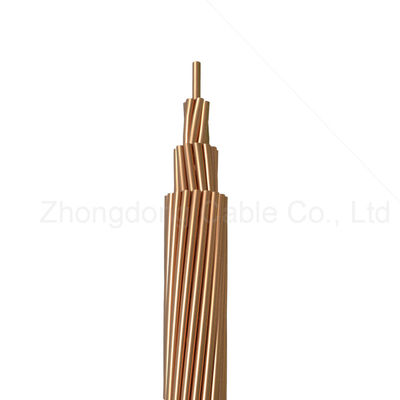

BCC Bare Copper Conductor Stranded 120mm2 19/2.80 for Earthing system
Solid and stranded (classes AA and A) bare copper are suitable for overhead transmission and distribution applications. Stranded conductor of greater flexibility (classes B and C) are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
Bare copper, solid or stranded. Available in tempers hard, medium-hard, or soft. Stranded conductors are concentrically stranded in hard and medium-hard tempers and are Combination Unilay stranded in the soft-drawn temper.
BS 6360 and BS EN 60228 / IEC 60228
ASTM B-1 Hard-Drawn Copper Wire.
ASTM B-2 Medium-Hard Copper Wire.
ASTM B-3 Soft or Annealed Copper Wire.
ASTM B-787 19 Wire Combination Unilay-Stranded Soft copper wire.
ASTM B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.
Stranded bare soft or annealed copper conductors are suitable for direct burial and do not suffer from the inherent corrosion problems that an aluminum conductor would. Copper is almost twice as conductive as aluminum. Copper is easier than aluminum to terminate and join at splices and joints.
Size |
Actual cross-sectional area |
Number |
Diameter of single wire |
Nominal Overall Diameter |
Approximate weight |
Current Rating |
AWG or MCM or KCMIl |
mm2 |
of single wire |
mm |
mm |
kg/km |
A |
10 |
5.3 |
7 |
0.98 |
3.27 |
48 |
50 |
8 |
8.3 |
7 |
1.23 |
3.69 |
76 |
95 |
6 |
13.4 |
7 |
1.56 |
4.68 |
121 |
130 |
4 |
21.1 |
7 |
1.96 |
5.88 |
192 |
170 |
3 |
26.6 |
7 |
2.2 |
6.6 |
242 |
200 |
2 |
33.5 |
7 |
2.47 |
7.41 |
305 |
230 |
1 |
42.5 |
7 |
2.78 |
8.34 |
384 |
265 |
1/0 |
53.5 |
7 |
3.12 |
9.35 |
485 |
310 |
1/0 |
54.4 |
19 |
1.91 |
9.47 |
485 |
310 |
2/0 |
67.7 |
7 |
3.51 |
10.52 |
611 |
355 |
2/0 |
67.7 |
19 |
2.13 |
10.62 |
611 |
355 |
3/0 |
85.3 |
7 |
3.94 |
11.79 |
771 |
410 |
3/0 |
85.2 |
19 |
2.39 |
11.94 |
771 |
410 |
4/0 |
107.4 |
7 |
4.42 |
13.26 |
972 |
480 |
4/0 |
108 |
19 |
2.69 |
13.41 |
972 |
480 |
250 |
127.2 |
19 |
2.92 |
14.58 |
1149 |
530 |
250 |
125.7 |
37 |
2.08 |
14.61 |
1149 |
530 |
300 |
152.8 |
19 |
3.2 |
15.95 |
1378 |
590 |
300 |
152.4 |
37 |
2.29 |
16 |
1378 |
590 |
350 |
177.6 |
19 |
3.45 |
17.25 |
1609 |
650 |
350 |
175.9 |
37 |
2.46 |
17.3 |
1609 |
650 |
400 |
203.2 |
19 |
3.69 |
18.42 |
1838 |
— |
400 |
202.5 |
37 |
2.64 |
18.49 |
1838 |
— |
500 |
252.9 |
37 |
2.95 |
20.68 |
2297 |
810 |
600 |
303.2 |
37 |
3.23 |
22.63 |
2757 |
910 |
381750 |
381 |
61 |
2.82 |
25.35 |
3446 |
1040 |
5061000 |
506 |
61 |
3.25 |
29.26 |
4595 |
1240 |
6311250 |
631.3 |
61 |
3.63 |
32.84 |
5742 |
1451 |
6221250 |
622 |
91 |
2.95 |
32.74 |
5742 |
1430 |
7591500 |
758.9 |
61 |
3.98 |
35.84 |
6891 |
1669 |
7551500 |
754.9 |
91 |
3.25 |
35.86 |
6891 |
1669 |
