Overhead AAAC Bare Conductor Twisted Wire 100mm2 for Power Transmission

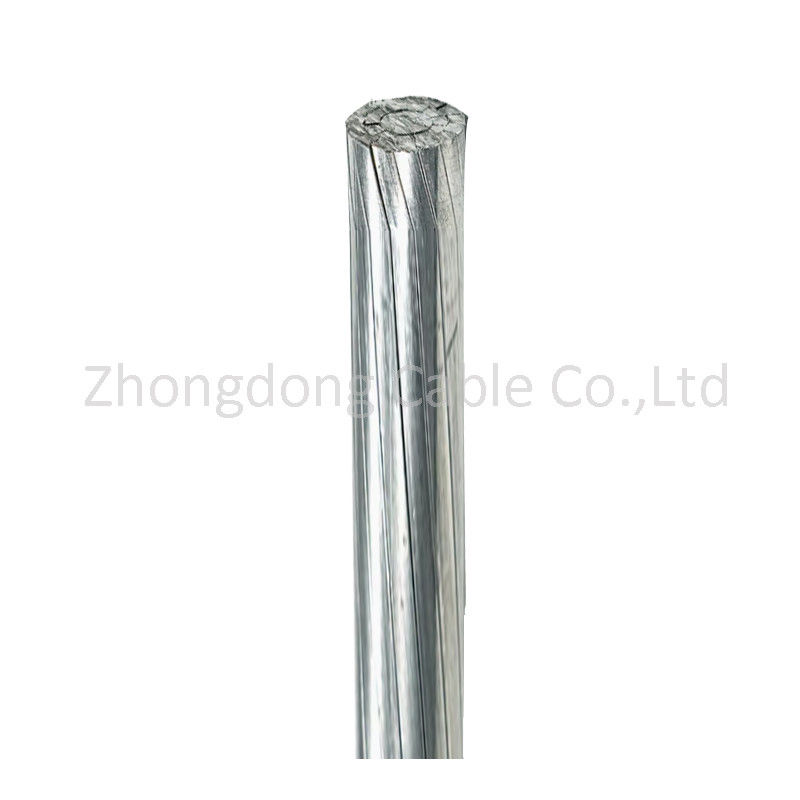

Large Image : Overhead AAAC Bare Conductor Twisted Wire 100mm2 for Power Transmission

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CCC,IEC,VDE,TUV,ISO
Model Number:	AAAC

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Wooden Drum
Delivery Time:	7-30 days based on different Qty
Payment Terms:	,L/C,T/T
Supply Ability:	500KM/Week

Contact Now

Overhead AAAC Bare Conductor Twisted Wire 100mm2 for Power Transmission

Description

Range Of Application:	Overhead Transmission, Overhead Ground	Material:	Aluminum
Drum Packing:	Steel Wooden Drum	Product Name:	AAC/AAAC/ACSR/ACSS/ACCC
Per Drum Weight:	As Per Request	Voltage:	Up To 110KV
Highlight:	100mm2 aaac conductor , 100mm2 bare conductor , power transmission aaac conductor

Overhead AAAC Bare Conductor Cable Twisted Wire 100mm2 for Power Transmission

Application

The twisted wire is realized by rotating the twisted single wire around the twisted wire axis at equal angular speed and moving the twisted wire forward at uniform speed. It is suitable for the occasions where the working frequency is high and the skin effect and proximity effect loss of single strand wire are too large. The use of stranded wire can reduce the operating temperature, compared with the same cross-sectional area of single strand wire, stranded wire has higher mechanical, flexibility.

Construction

Code name	Item	Application
AAC	All-aluminium Conductor	Mainly for overhead power transmission and primary and secondary distribution
AAAC	All Aluminimum Alloy Conductor
ACSR	Aluminium Conductor Steel Reinforced	Used us bare overhead transmission cable and as primary and secondary distribution cable. ACSR/AACSR/TACSR offers optimal

Discription

Nominal Area	Stranding&Wire Dia.		Overall Dia.	Weight	Breaking Load	DC Resistance at 20ºC	Current Rating
Nominal Area	Aluminum	Steel	Overall Dia.	Weight	Breaking Load	DC Resistance at 20ºC	Current Rating
MM2	NO./MM	NO./MM	MM	KG/KM	kN	Ω/km	A
25	6/2.36	1/2.36	7.08	72.1	9.61	1.093	126
50	6/3.35	1/3.35	10.05	214.1	18.35	0.5426	185
100	6/4.72	1/4.72	14.15	394.7	32.70	0.2733	278
150	30/2.59	7/2.59	18.13	725.9	69.20	0.1828	355
150	18/3.35	1/3.35	16.75	507.4	35.70	0.1815	349
175	30/2.79	7/2.79	19.53	842.4	79.80	0.1576	386

Tag:

Contact Person: Mr. Bai

Tel: +8619829885532
