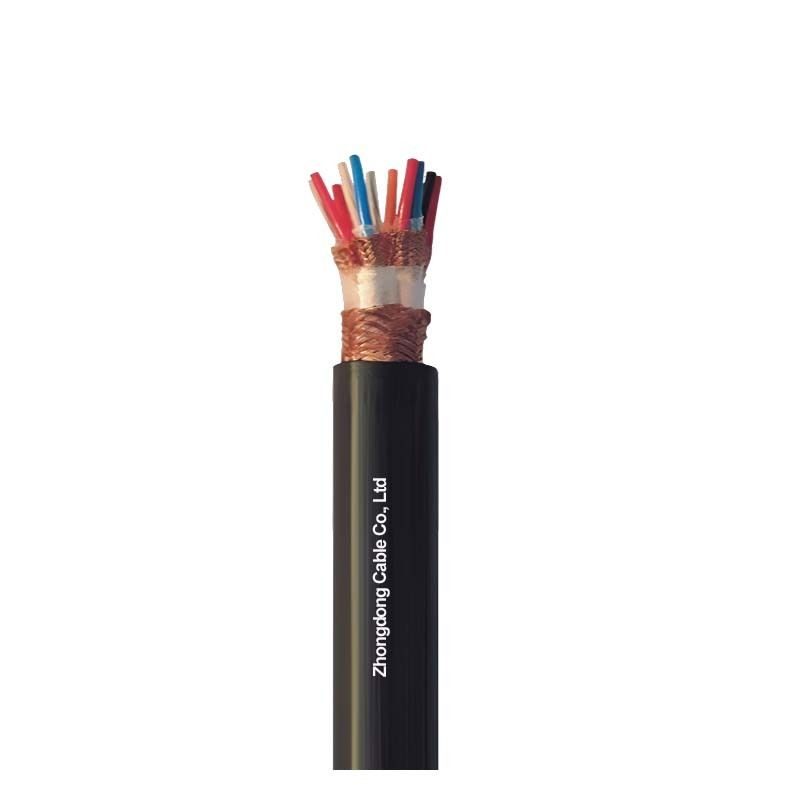

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable
Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable

Large Image :  Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO
Model Number: DJYPVP-300/500V ZC-DJYPVP 300/500V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drums
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable

Description
Conductor: Copper Insulation: PVC
Drain Wire: Tinned Copper Voltage Rating: 300V/500V
Outer Sheath Colour: Black,Blue Temperature: Fixed -40°C To +80°C

Shielded Instrument Cable 300/500V  Braided Shield PVC Sheathed Computer Cable


APPLICATION

The cable is suitable for electronic computers and automation instruments with high anti-interference requirements for rated voltage of 500V and below



CONSTRUCTION

Conductor: The first or second type of copper conductor

Insulation:Low density polyethylene (LLDPE)

Filler (optional): Filling rope

Separate shielding: Braided shielding (P)

Overall shield: Braided shielding (P)

Outer sheath:Polyvinyl chloride ST2 (PVC)


Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable 0

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable 1

STANDARD

TICW/06-2009,GB/T 3956

CHARACTERISTIC



Voltage Rating Uo/U: 300/500V

Maximum system voltage (Um):600V

Temperature Rating

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -20℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius

During installation: 12D

After installation: 10D

(D is the actual outer diameter of the cable


SPECIFICATION



No of Pair



No of Core

Section

Mm2

Insulation thickness

mm

Diameter of single metal wire used in shielding layer                mm

Diameter of single metal wire used for winding in overall shielding of outer layer

mm

Outer sheath thickness

mm

Approx outer diameter of cable mm

Approximate cable weight

kg/km

2

2

0.5

0.5

0.15

0.15

1.1

12.5

164

3

2

0.5

0.5

0.15

0.15

1.2

13.5

205

4

2

0.5

0.5

0.15

0.2

1.2

14.8

263

5

2

0.5

0.5

0.15

0.2

1.2

15.9

310

6

2

0.5

0.5

0.15

0.2

1.3

17.5

367

7

2

0.5

0.5

0.15

0.2

1.3

17.5

392

8

2

0.5

0.5

0.15

0.2

1.3

19.4

457

9

2

0.5

0.5

0.15

0.2

1.3

20.8

514

10

2

0.5

0.5

0.15

0.2

1.4

22.0

567

11

2

0.5

0.5

0.15

0.2

1.4

22.0

593

12

2

0.5

0.5

0.15

0.2

1.4

22.7

634

13

2

0.5

0.5

0.15

0.2

1.4

23.7

685

14

2

0.5

0.5

0.15

0.2

1.4

23.7

711

15

2

0.5

0.5

0.15

0.25

1.4

25.1

793

16

2

0.5

0.5

0.15

0.25

1.4

25.1

819

17

2

0.5

0.5

0.15

0.25

1.5

26.7

889

18

2

0.5

0.5

0.15

0.25

1.5

26.7

915

19

2

0.5

0.5

0.15

0.25

1.5

26.7

936

20

2

0.5

0.5

0.15

0.25

1.5

28.0

1005

21

2

0.5

0.5

0.15

0.25

1.5

28.0

1032

22

2

0.5

0.5

0.15

0.25

1.5

29.5

1098

23

2

0.5

0.5

0.15

0.25

1.5

29.5

1124

24

2

0.5

0.5

0.15

0.25

1.6

31.1

1203

25

2

0.5

0.5

0.15

0.25

1.6

31.1

1229

26

2

0.5

0.5

0.15

0.25

1.6

31.1

1255

27

2

0.5

0.5

0.15

0.25

1.6

31.8

1301

28

2

0.5

0.5

0.15

0.25

1.6

32.9

1360

29

2

0.5

0.5

0.15

0.25

1.6

32.9

1386

30

2

0.5

0.5

0.15

0.25

1.6

32.9

1412

31

2

0.5

0.5

0.15

0.25

1.7

34.4

1491

32

2

0.5

0.5

0.15

0.25

1.7

34.4

1517

33

2

0.5

0.5

0.15

0.25

1.7

34.4

1543

34

2

0.5

0.5

0.15

0.3

1.7

35.8

1650

35

2

0.5

0.5

0.15

0.3

1.7

35.8

1676

36

2

0.5

0.5

0.15

0.3

1.7

35.8

1702

37

2

0.5

0.5

0.15

0.3

1.7

35.8

1715

38

2

0.5

0.5

0.15

0.3

1.7

37.2

1802

39

2

0.5

0.5

0.15

0.3

1.7

37.2

1829

40

2

0.5

0.5

0.15

0.3

1.7

37.2

1855

41

2

0.5

0.5

0.15

0.3

1.8

38.9

1948

42

2

0.5

0.5

0.15

0.3

1.8

38.9

1974

43

2

0.5

0.5

0.15

0.3

1.8

38.9

2000



OUR PLANTS

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable 2


APPLICATION

Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable 3Shielded Instrument Cable 300/500V Braided Shield PVC Sheathed Computer Cable 4


FAQ

Q1: Are you a factory?
A1:We are a manufacturer with more than 20 years of experience.
Q2: How about MOQ ?
A2: We adopt flexible MOQ policy.

Q3: How long is your delivery time?
A3: Generally it is 3-7 days if wires are in stock. if wires are not in stock, it is according to quantity.
Q4: Can I see the sample first before I place the real order ?
A4: Of course. We can offer samples for testing .
Q5 : Can I get a discount?
A5:It depends on your quantity. Please contact us.
Q6: Do you accept OEM/ODM?
A6:We support OEM/ODM service
