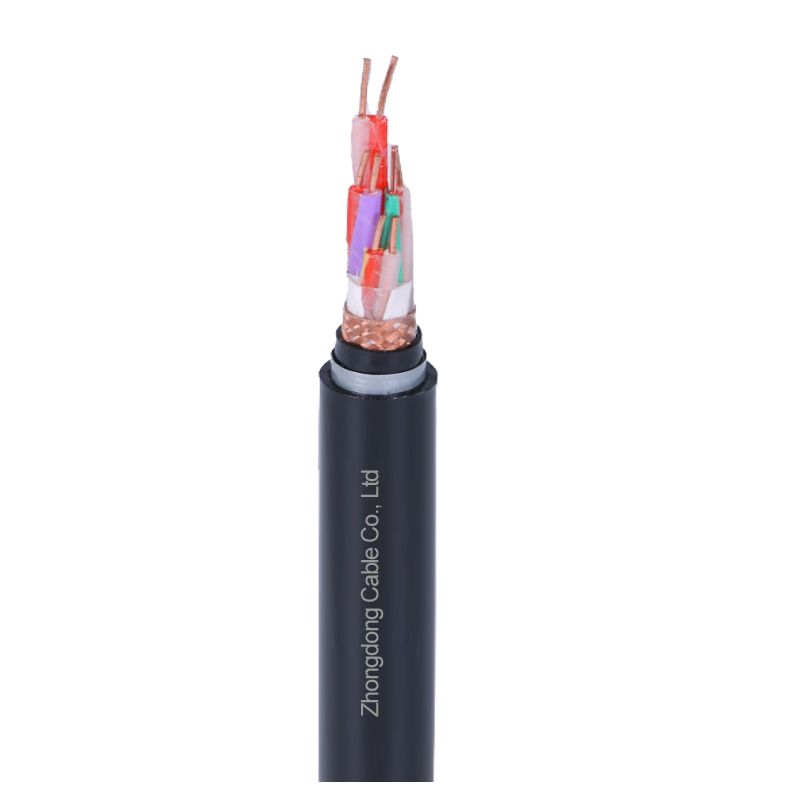

STA Shielded Instrument Cable Flame Retardant Computer Cable

Large Image : STA Shielded Instrument Cable Flame Retardant Computer Cable

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	IEC,CE,ISO
Model Number:	DJYPVP-300/500V ZC-DJYPVP 300/500V

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden drums
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/Week

Contact Now

STA Shielded Instrument Cable Flame Retardant Computer Cable

Description

Conductor:	Copper	Insulation:	PVC
Drain Wire:	Tinned Copper	Voltage Rating:	300V/500V
Outer Sheath Colour:	Black,Blue	Temperature:	Fixed -40°C To +80°C

STA Shielded Instrument Cable Flame Retardant Computer Cable

APPLICATION

Industrial automation systems (PLC, DCS, SCADA)
Power plants, chemical plants, and mining facilities
Data centers and computer rooms requiring EMI shielding
Underground or hazardous locations requiring flame retardancy

CONSTRUCTION

Conductor: The first or second type of copper conductor
Insulation:Low density polyethylene (LLDPE)
Filler (optional): Filling rope
Separate shielding: Braided shielding (P)
Overall shield: Braided shielding (P)
Armouring:Steel Tape Armour
Outer sheath:Polyvinyl chloride ST2 (PVC)

STA Shielded Instrument Cable Flame Retardant Computer Cable 0

STA Shielded Instrument Cable Flame Retardant Computer Cable 2

STANDARD

T1CW/06-2009.GB/T3956,GB/T 19666

CHARACTERISTIC

Voltage Rating Uo/U: 300/500V
Maximum system voltage (Um):600V
Maximum operating temperature of conductor:+70℃
Operating ambient temperature: -20℃~+45℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius: During installation: 12D After installation: 10D

SPECIFICATION

No of Pair	No of Core	Section mm²	Insulation thickness mm	Total screen single filament diameter mm	Steel Tape Thickness mm	Outer sheath thickness mm	Approx cable outer diameter mm	Approx cable weight kg/km
1	2	0.5	0.50	0.15	02	1.1	10.7	148
2	2	0.5	0.50	0.15	02	1.2	136	226
3	2	0.5	0.50	0.15	0.2	1.2	14.1	249
4	2	0.5	0.50	0.15	0.2	12	14.9	281
5	2	0.5	0.50	0.15	02	1.2	158	315
6	2	0.5	0.50	0.15	02	12	16.7	351
7	2	0.5	0.50	0.15	0.2	1.2	16.7	360
8	2	0.5	0.50	0.2	02	13	18.6	437
9	2	0.5	0.50	0.2	02	1.3	19.7	481
10	2	0.5	0.50	0.2	0.2	13	20.4	511
11	2	0.5	0.50	0.2	0.2	13	204	522
12	2	0.5	0.50	0.2	02	13	20.9	548
13	2	0.5	0.50	0.2	02	13	21.7	583
14	2	0.5	0.50	0.2	02	13	21.7	594
15	2	0.5	0.50	0.2	02	14	22.9	644
16	2	0.5	0.50	0.2	0.2	14	22.9	654
17	2	0.5	0.50	0.2	02	14	238	696
18	2	0.5	0.50	0.2	02	14	238	707
19	2	0.5	0.50	0.2	0.2	14	238	712
20	2	0.5	0.50	0.2	0.2	14	24.9	763
21	2	0.5	0.50	0.2	0.2	14	24.9	774
22	2	0.5	0.50	0.2	0.2	14	26.0	822
23	2	0.5	0.50	0.2	0.2	14	26.0	832
24	2	0.5	0.50	0.2	0.2	1.5	273	891
25	2	0.5	0.50	0.2	02	1.5	27.3	902
26	2	0.5	0.50	0.2	02	1.5	273	912
27	2	0.5	0.50	0.2	0.2	1.5	28.2	966
28	2	0.5	0.50	0.25	02	1.5	29.2	1037
29	2	0.5	0.50	0.25	0.2	1.5	29.2	1048
30	2	0.5	0.50	0.25	0.2	1.5	29.2	1059
31	2	0.5	0.50	0.25	0.2	1.5	30.1	1105
32	2	0.5	0.50	0.25	02	15	30.1	1116
33	2	0.5	0.50	0.25	02	1.5	30.1	1126
34	2	0.5	0.50	0.25	0.5	1.6	32.5	1473
35	2	0.5	0.50	0.25	0.5	1.6	325	1483
36	2	0.5	0.50	0.25	0.5	16	325	1494
37	2	0.5	0.50	0.25	0.5	1.6	325	1492
38	2	0.5	0.50	0.25	0.5	16	33.6	1568
39	2	0.5	0.50	0.25	0.5	1.6	33.6	1579
40	2	0.5	0.50	0.25	0.5	16	33.6	1590
41	2	0.5	0.50	0.25	0.5	1.6	34.7	1656
42	2	0.5	0.50	0.25	0.5	1.6	34.7	1667

OUR PLANTS

STA Shielded Instrument Cable Flame Retardant Computer Cable 3

APPLICATION

STA Shielded Instrument Cable Flame Retardant Computer Cable 4

PACKAGE

PARTNER

STA Shielded Instrument Cable Flame Retardant Computer Cable 7

FAQ

1‌. What is the voltage rating (300/500V) used for?‌

This ‌low-voltage rating‌ ensures safe operation in control circuits and instrumentation systems.

2. Where should this cable be installed?‌

Ideal for ‌industrial settings, power substations, and data centers‌ where EMI protection and flame resistance are critical.

3‌. Is this cable suitable for outdoor use?‌

Yes, due to its ‌armor and PVC sheath‌, but UV-resistant versions are recommended for prolonged sun exposure.

4‌. Does it comply with international standards?‌

While meeting Chinese (GB) standards, similar cables may comply with ‌IEC 60332-1 (flame retardancy) and IEC 60502 (armor requirements)‌.

5. How does it compare to ordinary shielded cables?‌

Unlike basic shielded cables, this variant offers ‌flame retardancy, armor, and higher durability‌, making it superior for industrial use.
