STANDARD
IEC, BS, ICEA, ASTM, DIN
SPECIFICATION
|
Code name
|

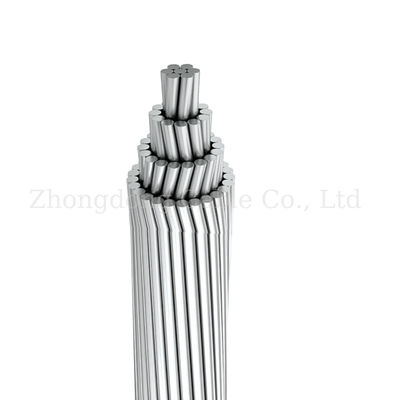

ACSR dog conductor
|
ACSR rabbit conductor
|
|
Nominal aluminum area mm2
|
100
|
50
|
|
Stranding structure
|
AI.No.
|
6
|
6
|
|
AI.Dia.
|
4.72
|
3.35
|
|
St.No.
|
7
|
1
|
|
St.Dia
|
1.57
|
3.35
|
|
Sectional area of aluminum
|
mm2
|
105
|
52.88
|
|
Total sectional area
|
mm 2
|
118.5
|
61.7
|
|
overall diameter
|
mm
|
14.15
|
10.05
|
|
Total
|
kg/km
|
394
|
214
|
|
Calculated breaking load
|
daN
|
3270
|
1835
|
|
Calculate D.C resistance at 20℃
|
Q/km
|
0.2733
|
0.5426
|
|
Current Rating
|
A
|
278
|
185
|
ABOUT US
OUR WAREHOUSE
APPLICATION
FAQ
Q1:Are you factory or trader?
A1: We are factory,We have production bases in Hebei province
Q2: How about your delivery time ?
A2: Generally speaking, we can finish the production and deliver the goods within 7 days.If your order is large, please consult our sales staff for the specific production time.
Q3:Can you offer sample service?
A3: Yes,we can offer free sample,but the shipping cost need to be charged by you.
Q4:Can you accept OEM?
A4:Yes,We can.Please feel free to tell us your requirements, and our professional engineers will help you make the most suitable plan.
Q5:Why choose your company?
A5:We have over 20 years wires and cables production and export experience,We know well every detail during exporting and Each index of cable.So it will be much easier to cooperate with us.
