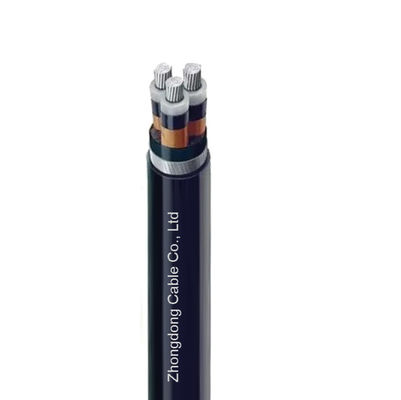

Aluminium Alloy Conductor XLPE Insulated Power Cable 3 Core NA2XS2Y / NA2XS(F)2Y / NA2X(FL)2Y

Aluminium Alloy Conductor XLPE Insulated Power Cable 3 Core NA2XS2Y / NA2XS(F)2Y / NA2X(FL)2Y

APPLICATION

• ‌Industrial & Commercial Power Supply‌: Widely used in factory power distribution, substations, and large-scale commercial buildings.
• Direct Burial‌: The steel tape armor (ST) provides excellent mechanical protection against impacts and crushing forces, making it suitable for direct burial in rocky or hard soil.
• Bridge & Tunnel Applications‌: Preferred in bridges and tunnels due to its resistance to mechanical stress and environmental factors.
• Long-Distance Transmission‌: Used in medium-voltage transmission lines where high tensile strength and moisture resistance are critical.

CONSTRUCTION

• Conductor:Round compacted conductors
• Conductor Shield:Semi conductive shielding material (below 500mm2)
• Semi conductive tape+semi conductive shielding material (500mm2 and above)
• Insulation: Polyvinyl chloride (PVC)
• Insulation Shield: Peelable semiconducting shielding material
• Metal Shield Layer:Copper Tape   Copper Wire(35kV 500mm2 above)
• Filler: Polypropylene(PP) mesh filling rope
• Binder Tape:Non hygroscopic straps
• Armouring: Steel Tape(Single core)   Galvanized steel tape(3 core)
• Outer sheath: 90℃ Polyvinyl chloride (PVC)

STANDARD

GB/T 12706.1,IEC 60502-1

CHARACTERISTIC

Voltage Rating Uo/U:12/20(24)kV

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius:  Single Core 15D    Three Core 12D    (D is the actual outer diameter of the cable)

SPECIFICATION

Laying method

Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying, etc.

OUR FACTORY

PROJECTS

PARTNER

FAQ

Q1: How to select proper conductor size?‌
A: Follow these steps:

Calculate max current (IEC 60228)

Verify short-circuit withstand (IEC 60949)

Check voltage drop (≤3% for power lines)
Standard sizes: 1.5mm² to 6mm² (18-12 AWG)

‌Q2: What's the flame retardancy standard for NYBY/NYRY?‌
A: Must pass:
• IEC 60332-1 (vertical flame)
• IEC 61034-2 (smoke density <60%)
• IEC 60754-1 (halogen content <5%)

Q3.Are you a factory or trading company?

A3: We are a manufacturer.

Q4:How to get a free sample?
A4.Ofcourse,we could provide free samples and you charge the shipping cost
Q5. How long delivery time?
A5.It usualy take 7-10days for sample order and 25-30days for big order.

Q6.What is your payment term?
A5: Our paymen term is usualy T/T30% in advanced,the balance before picking up the goods
