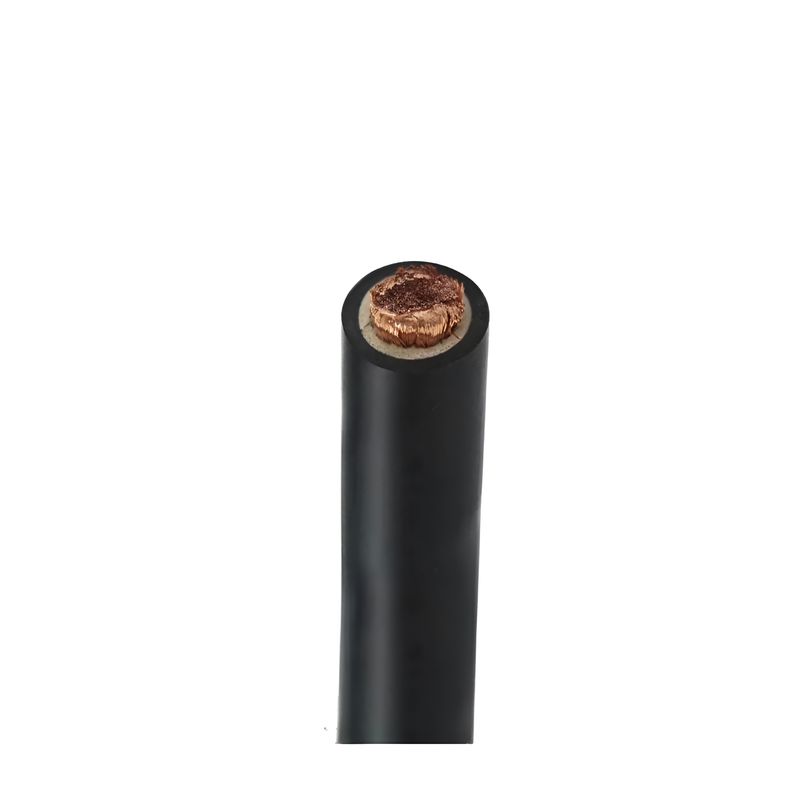

H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228

H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228
H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228
H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228

Large Image :  H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: CCC,ISO,CE,TUV,IEC
Model Number: Flexible Cable
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228

Description
Application: Construction Sheath: Rubber
Metric Cross-Sections: 1.5mm² To 630mm² Conductor Material: Copper
Color: Black, Orange, Red, Etc.
Highlight:

H07RN-F rubber cable 450/750V

,

flexible rubber cable EN 60228

,

industrial rubber cable 1.5mm²-630mm²

Flexible Rubber Cable 1.5mm-630mm H07RN-F H05RN-F EN 60228:2005
APPLICATION
H07RN-F Cable Applications
  • Industrial Machinery: Suitable for power supply in construction equipment, cranes, and metallurgical machinery, especially in environments requiring frequent movement or mechanical stress
  • Outdoor & Harsh Conditions: Designed for use in ports, ship decks, and agricultural machinery, offering resistance to weather, oil, UV radiation, and chemical corrosion
  • Temporary Installations: Ideal for construction sites, stage lighting, and temporary power supply in residential or military camps
  • Safety Compliance: Meets EN50525-3-14 standards, RoHS certification, and flame-retardant requirements
H05RN-F Cable Applications
  • Light Industrial Use: Primarily for indoor or light-duty outdoor applications, such as handheld tools, small appliances, and LED lighting (e.g., garden lights, pool lights)
  • Fixed Installations: Used in dry or damp indoor environments, including temporary wiring for residential or commercial buildings
  • Flexibility & Safety: Features natural rubber insulation for flexibility and complies with VDE 0293 standards for low-voltage applications
CONSTRUCTION
  • Conductor: Class 5 flexible plain copper to BS EN 60228:2005 (previously BS6360)
  • Insulation: EPR (Ethylene Propylene Rubber) Type E14 to BS7655
  • Sheath: PCP (Polychloroprene) Type EM3 to BS7655
  • Sheath Color: Black
H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 0 H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 1 H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 2
TECHNICAL DATA
  • Minimum bending radius: 4 to 8 x outer diameter (EN 50565-1)
  • Nominal voltage: U0/U: 300/500 V
  • Test voltage: 2000 V
  • Temperature range: Fixed installation: -25°C up to +60°C
    Occasionally moved: -25°C bis +60°C
SPECIFICATION
HAR Code IEC Description Voltage Design Cores
H05RR-F 60245IEC 53(YZ)/YZ Ordinary rubber sheathed cord 300/500V 2~6
H05RN-F 60245 IEC 57(YZW)/YZW Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord 300/500V 2~6
H07RN-F 60245 IEC 66(YCW)/YC Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable 450/750V 1~5, 3+1/3+2/4+1
H01N2-D 60245 IEC 81(YH) Rubber sheathed arc-welding electrode cable 100/100V 10-120
60245 IEC 82(YHF) Polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable 100/100V 10-120
PRODUCTION LINE
H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 3
OUR WAREHOUSE
H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 4
OUR PROJECTS
H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 5
OUR CLIENTS
H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 6 H07RN-F Rubber Cable 1.5mm²-630mm² 450/750V EN 60228 7
FAQ
What are the key differences between H07RN-F and H05RN-F cables?
H07RN-F (450/750V) is designed for higher voltage and mechanical stress compared to H05RN-F (300/500V), with enhanced rubber insulation for industrial environments.
Where are these cables typically used?
Ideal for construction sites, stage equipment, and portable tools due to their oil/weather resistance and flexibility in -40°C to 90°C temperatures.
Can they be used for fixed installations?
Yes, H07RN-F supports fixed installations up to 1000V AC with protective measures per IEC 60364-5-52.
What conductor materials are used?
Bare copper or tinned copper conductors complying with VDE 0295 Class 5 for flexibility.
How to identify cable cores?
Black cores with white numbering for phase identification; 3+ core cables include a green-yellow earth wire.
What's the minimum bending radius?
Approximately 4 times the outer diameter (4D) to avoid damage.
Are these cables UV-resistant?
Yes, rubber (EM2) provides excellent UV and ozone resistance for outdoor use.
Can they be used in damp environments?
Designed for both dry/wet conditions, including temporary buildings and wastewater systems.
How to order customized lengths?
Available in 100m rolls or custom lengths, with options for core counts.
