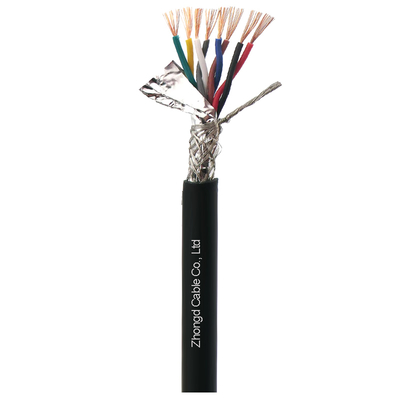

Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg

Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg
Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg

Large Image :  Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg

Product Details:
Place of Origin: Hebei，China
Brand Name: Zhongdong
Certification: IEC,CE,ISO
Model Number: DJYPVP-300/500V ZC-DJYPVP 300/500V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: wooden drums
Delivery Time: 10Days
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Contact Now

Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg

Description
Conductor: Copper Insulation: PVC
Drain Wire: Tinned Copper Voltage Rating: 300V/500V
Outer Sheath Colour: Black,Blue Temperature: Fixed -40°C To +80°C

Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg


APPLICATION


Multi pair twisted cables are fundamental in modern communication and data transmission systems, offering reliable performance across various industries. Their structured design with individually twisted wire pairs minimizes electromagnetic interference (EMI) and crosstalk, making them indispensable in:

  • Telecommunications
  • Networking Infrastructure
  • Industrial Automation
  • Audio-Visual Systems
  • Transportation


CONSTRUCTION

  • Conductor: The first or second type of copper conductor
  • Insulation:Low density polyethylene (LLDPE)
  • Filler (optional): Filling rope
  • Separate shielding: Braided shielding (P)
  • Overall shield: Braided shielding (P)
  • Armouring:Steel Tape Armour
  • Outer sheath:Polyvinyl chloride ST2 (PVC)



Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 0Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 1

Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 2

STANDARD

 T1CW/06-2009.GB/T3956,GB/T 19666


CHARACTERISTIC

  •  Voltage Rating Uo/U: 300/500V
  • Maximum system voltage (Um):600V
  • Maximum operating temperature of conductor:+70℃
  • Operating ambient temperature: -20℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius:  During installation: 12D    After installation: 10D


SPECIFICATION


No of Pair

No of Core

Section
mm²

Insulation thickness   mm

Total screen single filament diameter

 mm

Steel Tape Thickness
mm

Outer sheath thickness
   mm

Approx cable outer diameter
mm

Approx cable weight
kg/km

1

2

0.5

0.50

0.15

02

1.1

10.7

148

2

2

0.5

0.50

0.15

02

1.2

136

226

3

2

0.5

0.50

0.15

0.2

1.2

14.1

249

4

2

0.5

0.50

0.15

0.2

12

14.9

281

5

2

0.5

0.50

0.15

02

1.2

158

315

6

2

0.5

0.50

0.15

02

12

16.7

351

7

2

0.5

0.50

0.15

0.2

1.2

16.7

360

8

2

0.5

0.50

0.2

02

13

18.6

437

9

2

0.5

0.50

0.2

02

1.3

19.7

481

10

2

0.5

0.50

0.2

0.2

13

20.4

511

11

2

0.5

0.50

0.2

0.2

13

204

522

12

2

0.5

0.50

0.2

02

13

20.9

548

13

2

0.5

0.50

0.2

02

13

21.7

583

14

2

0.5

0.50

0.2

02

13

21.7

594

15

2

0.5

0.50

0.2

02

14

22.9

644

16

2

0.5

0.50

0.2

0.2

14

22.9

654

17

2

0.5

0.50

0.2

02

14

238

696

18

2

0.5

0.50

0.2

02

14

238

707

19

2

0.5

0.50

0.2

0.2

14

238

712

20

2

0.5

0.50

0.2

0.2

14

24.9

763

21

2

0.5

0.50

0.2

0.2

14

24.9

774

22

2

0.5

0.50

0.2

0.2

14

26.0

822

23

2

0.5

0.50

0.2

0.2

14

26.0

832

24

2

0.5

0.50

0.2

0.2

1.5

273

891

25

2

0.5

0.50

0.2

02

1.5

27.3

902

26

2

0.5

0.50

0.2

02

1.5

273

912

27

2

0.5

0.50

0.2

0.2

1.5

28.2

966

28

2

0.5

0.50

0.25

02

1.5

29.2

1037

29

2

0.5

0.50

0.25

0.2

1.5

29.2

1048

30

2

0.5

0.50

0.25

0.2

1.5

29.2

1059

31

2

0.5

0.50

0.25

0.2

1.5

30.1

1105

32

2

0.5

0.50

0.25

02

15

30.1

1116

33

2

0.5

0.50

0.25

02

1.5

30.1

1126

34

2

0.5

0.50

0.25

0.5

1.6

32.5

1473

35

2

0.5

0.50

0.25

0.5

1.6

325

1483

36

2

0.5

0.50

0.25

0.5

16

325

1494

37

2

0.5

0.50

0.25

0.5

1.6

325

1492

38

2

0.5

0.50

0.25

0.5

16

33.6

1568

39

2

0.5

0.50

0.25

0.5

1.6

33.6

1579

40

2

0.5

0.50

0.25

0.5

16

33.6

1590

41

2

0.5

0.50

0.25

0.5

1.6

34.7

1656

42

2

0.5

0.50

0.25

0.5

1.6

34.7

1667



OUR PLANTS


Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 3


APPLICATION


Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 4



PACKAGE


Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 5


PARTNER


Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 6Multi Pair Twisted Shielded Instrument Cable 2/4/5/12 Pair 20awg 22awg 24awg 7


FAQ

Q: What is the primary advantage of multi-pair twisted construction?
A: Twisting eliminates electromagnetic interference (EMI) by canceling out induced currents, while multi-pair design allows simultaneous transmission of multiple signals in a single cable.

Q: How does pair twist rate affect performance?
A: A consistent twist rate (typically 1-2 twists per inch) ensures balanced impedance and minimizes crosstalk between adjacent pairs.

Q: What shielding options are available for these cables?
A: Common options include foil shielding (100% coverage), braided shielding (60-95% coverage), and hybrid foil+braid for maximum EMI/RFI protection.

Q: What AWG sizes are standard for instrument cables?
A: 24 AWG is most common for balanced audio signals, while 22 AWG may be used for power/data hybrid applications.

Q: Can these cables be used in outdoor installations?
A: Yes, with UV-resistant jackets and moisture-blocking designs meeting IEC 60529 IP66 standards for harsh environments.

Q: What's the maximum recommended run length?
A: For 24 AWG pairs, runs up to 1000 feet are typical before signal degradation, depending on frequency and shielding quality.

Q: How do I terminate multi-pair cables?
A: Use modular plugs (RJ45) or terminal blocks with proper color-coding (T568A/B standards) to maintain pair integrity.
