AAAC Conductor Aerial Bundled Cable Xlpe Insulated Overhead Electric Cables OEM ODM

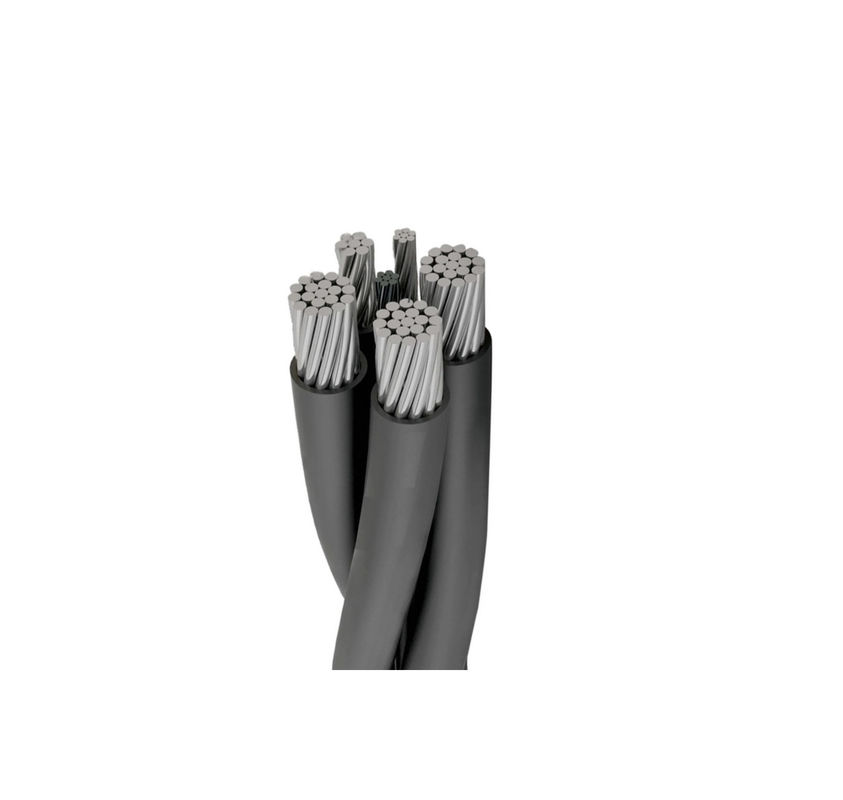

Large Image : AAAC Conductor Aerial Bundled Cable Xlpe Insulated Overhead Electric Cables OEM ODM

Product Details:

Place of Origin:	Hebei，China
Brand Name:	Zhongdong
Certification:	CE，ISO
Model Number:	AAAC

Payment & Shipping Terms:

Minimum Order Quantity:	1000m
Price:	Negotiable
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	10Days
Payment Terms:	L/C,T/T
Supply Ability:	100KM/WEEK

Contact Now

AAAC Conductor Aerial Bundled Cable Xlpe Insulated Overhead Electric Cables OEM ODM

Description

Conductor Material:	Aluminum	Insulation Material:	Xlpe
Cors:	2,3,4,5	Rated Voltage:	0.6/1KV
Conductor Working:	75℃	Application:	Overhead Aerial And Self Support
Highlight:	AAAC Conductor Aerial Bundled Cable , ODM Overhead Electric Cables , Aerial Bundled Cable Xlpe Insulated

AAAC Conductor Aerial Bundled Cable Xlpe Insulated Overhead Cable

Applications

ABC (Aerial Bundled Cable) is a versatile and reliable solution for overhead power distribution, particularly in rural and urban areas where safety, durability, and cost-effectiveness are critical. Its insulated design, weather resistance, and ease of installation make it a preferred choice for modern power distribution networks.

Construction

Phase Conductor:Aluminium conductor, round stranded compressed (RM).

Neutral Conductor:Alloy aluminium conductor (AlMgSi), round stranded compressed (RM).

Insulation:XLPE. Load-bearing / neutral core – marked with standard and producers phase core – marked with digits 1,2,3.

Assembly:Cores and the neutral, conductor stranded together in right-hand lay,additionally 1, 2 or 3 cores of reduced cross section can be co-stranded.

Advantages

Reduced Power Losses: Insulated conductors minimize energy losses during transmission.
Enhanced Safety: Reduced risk of electrical faults and accidental contact.
Lower Maintenance Costs: Durable and resistant to environmental damage, reducing the need for frequent repairs.
Aesthetic Appeal: Neat and compact design improves the appearance of overhead lines.
Cost-Effective: Lower installation and maintenance costs compared to underground cables.

Designated sizes

ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTMB-399 for 6201.Conductor temperature of 90°C for XLR 75°C for Poly; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun. To determine current ampacity by conductor size, please consult The National Electric Code, latest edition

Number of cores and cross-section	Shape of conductor	Conductor diameter	Nominal insulation thickness	Diameter over insulation	Nominal thickness sheath	Outer diameter (approx.)	Bending radius (min.)	Weight (approx.)
		(approx.)		(approx.)
mm2		mm	mm	mm	mm	mm	mm	kg/km
1x35/16	RM	7.2	3.4	15.3	2.5	24	360	904
1x50/16	RM	8.2	3.4	16.3	2.5	26	390	1039
1x70/16	RM	9.8	3.4	17.9	2.5	27	405	1271
1x95/16	RM	11.3	3.4	19.4	2.5	29	435	1530
1x120/16	RM	12.8	3.4	20.9	2.5	30	450	1809
1x150/25	RM	14.2	3.4	22.3	2.5	32	480	2158
1x185/25	RM	15.8	3.4	23.9	2.5	33	495	2524
1x240/25	RM	18.3	3.4	26.4	2.5	36	540	3117
1x300/25	RM	20.7	3.4	28.8	2.5	38	570	3786
1x400/35	RM	23.3	3.4	31.4	2.5	41	615	4750
1x500/35	RM	26.5	3.4	34.6	2.5	44	660	5786
